MCIMX6X1AVK08AB

Overview

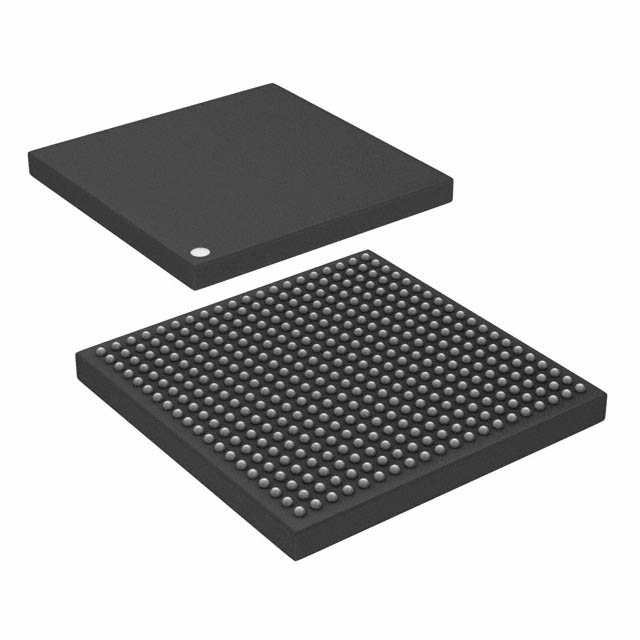

The MCIMX6X1AVK08AB is a 32-bit microprocessor from the NXP i.MX 6SoloX series, designed for consumer applications. It integrates an ARM Cortex-A9 core operating at 800 MHz and an ARM Cortex-M4 core running at 200 MHz. The device utilizes a 400-LFBGA package with dimensions of 14x14 mm. It supports LPDDR2, LVDDR3, and DDR3 memory types. Operating temperatures range from -40°C to +125°C (TJ). I/O voltages include 1.8V, 2.5V, 2.8V, and 3.15V.

Feature Summary

• Dual-core architecture combining high-performance Cortex-A9 processing with low-power Cortex-M4 control capabilities.
• Integrated hardware security features including A-HAB, ARM TrustZone, CAAM, CSU, and SNVS.
• Support for multiple multimedia interfaces such as AC'97, SAI, SPDIF, and SSI alongside standard communication protocols.

Applications

• Consumer electronics devices
• Infotainment systems
• Automotive applications

Procurement Notes

Verify component authenticity through authorized NXP distributors or certified suppliers. Confirm RoHS compliance status and REACH registration details prior to integration. Check for moisture sensitivity level (MSL 3) handling requirements during storage and assembly. Ensure design compatibility with the specified 400-LFBGA footprint and voltage levels.

Selection Notes

Select this processor when a dual-core solution with distinct real-time and application processing domains is required. The combination of Cortex-A9 and Cortex-M4 allows for efficient power management and task separation. Consider the specific I/O voltage requirements and available memory interfaces when designing the system board.

Part Context

This component belongs to the i.MX 6SoloX family, which targets cost-sensitive consumer markets. It provides a balance between performance and power consumption compared to higher-end i.MX 6 series processors. The MAPBGA-400 package offers a compact form factor suitable for space-constrained portable devices.

Replacement Considerations

Check NXP documentation for pin-compatible or functionally equivalent alternatives within the i.MX 6 series. Verify if newer revisions offer improved availability or updated security features. Ensure any substitute maintains the same core configuration and interface support.
