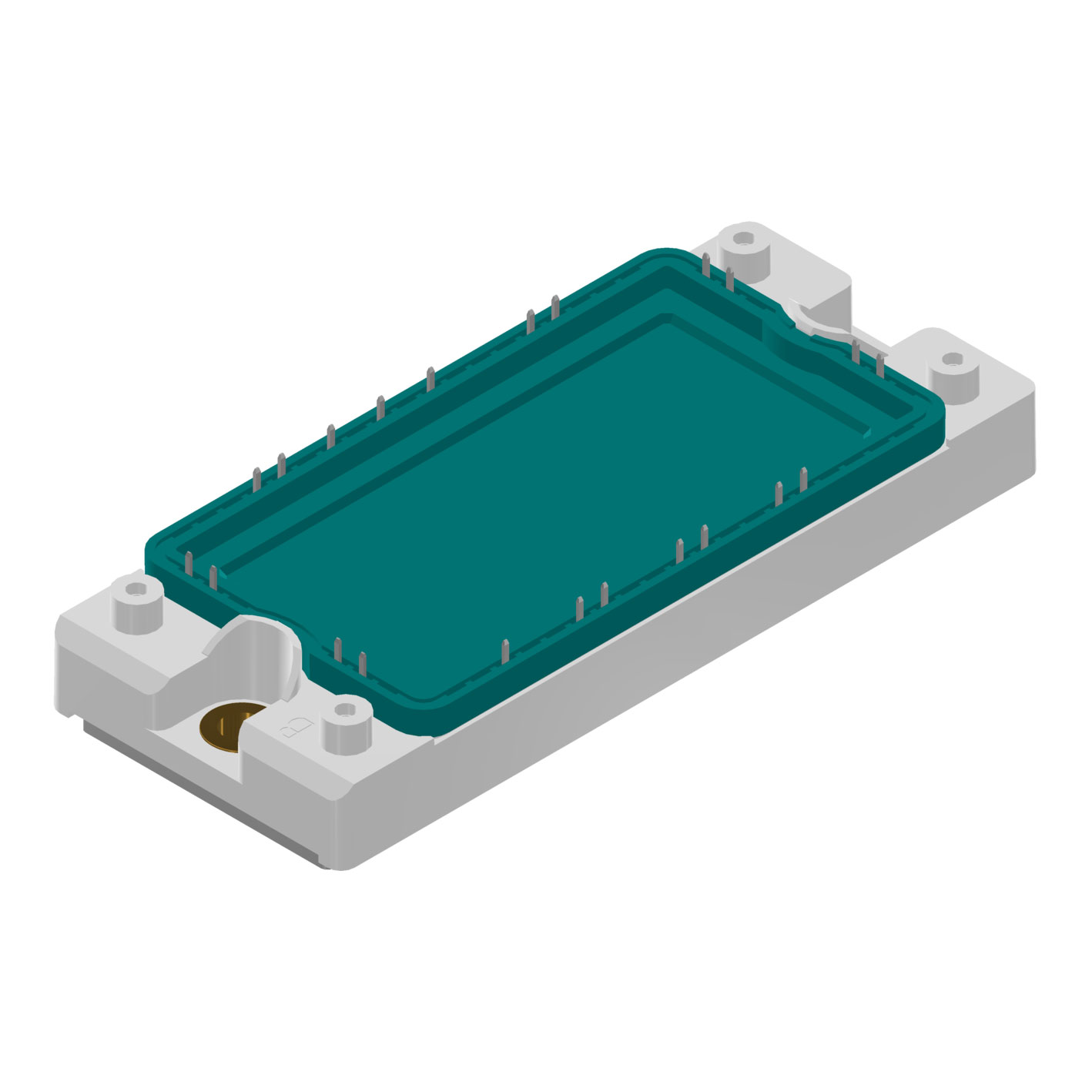

MCMA120UJ1800ED

$67.94

Description：SCR MODULE 1.8KV E2 PACK
Series：-

SKU:723f605739d4 Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR MODULE 1.8KV E2 PACK
Series：-
Mfr：IXYS
Package：Box
Structure：Bridge, 3-Phase - SCRs/Diodes
Number of SCRs, Diodes：3 SCRs, 3 Diodes
Voltage - Off State：1.8 kV
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：500A, 540A
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：E2
Voltage - Gate Trigger (Vgt) (Max)：1.4 V
Current - Gate Trigger (Igt) (Max)：70 mA
Current - Hold (Ih) (Max)：100 mA
Grade：-
Qualification：-

Download product information

MCMA120UJ1800ED

Overview

The MCMA120UJ1800ED is a thyristor module manufactured by IXYS. It features an SCR configuration housed in a TO-240AA package with screw mount installation. The device supports an RMS current of 120A and a repetitive peak off-state voltage of 1800V. It operates within a temperature range of -40°C to +140°C.

Feature Summary

Utilizes planar passivated chip technology for long-term stability
Designed for line frequency applications
Features direct copper bonding on Al2O3 substrate

Applications

Industrial motor drives
Power supply systems
Welding equipment

Procurement Notes

Verify the specific suffix ED against official datasheets to confirm exact electrical characteristics and pinout compatibility. Ensure thermal interface materials match the module's mounting requirements. Confirm RoHS compliance status through manufacturer documentation before integration into regulated environments.

Selection Notes

Select this component for high-power line frequency circuits requiring robust thyristor performance. Compare its 1800V blocking capability and 120A current rating against system demands. Evaluate the TO-240AA form factor for mechanical fit and thermal management needs relative to alternative modules.

Part Context

This module belongs to the MCMA series of thyristor components from IXYS. These devices are engineered for industrial power conversion tasks. The series emphasizes reliability in demanding electrical environments through advanced silicon processing techniques.

Replacement Considerations

Cross-reference with MCMA65P1800TA or MCMA110P1800TA for similar voltage ratings. Verify current handling differences and ensure identical mounting configurations before substitution.
