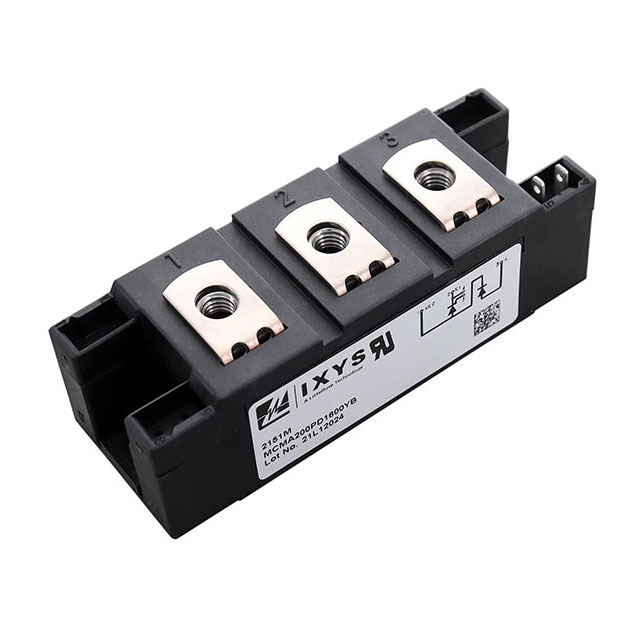

MCMA200PD1600YB

$55.64

Description：DUAL THYRISTOR/DIODE Y4
Series：-

SKU:d33664b18d29 Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DUAL THYRISTOR/DIODE Y4
Series：-
Mfr：IXYS
Package：Bulk
Structure：Series Connection - SCR/Diode
Number of SCRs, Diodes：1 SCR, 1 Diode
Voltage - Off State：1.6 kV
Current - On State (It (AV)) (Max)：200 A
Current - On State (It (RMS)) (Max)：315 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：6000A, 6480A
Operating Temperature：-40°C ~ 140°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：2.5 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：200 mA
Grade：-
Qualification：-

Download product information

MCMA200PD1600YB

Overview

The MCMA200PD1600YB is a dual thyristor/diode module from the IXYS MCMA series, designed for line frequency applications. It features a Y4-M6 chassis mount package with five pins. The device supports a rated repetitive off-state voltage of 1600 V and an RMS on-state current of 200 A. It withstands a non-repetitive surge current of 6 kA. The maximum forward voltage is 2.5 V. Operating temperatures range from -40°C to +125°C.

Feature Summary

Dual configuration integrating two thyristors and one diode in a single compact module.
Utilizes direct copper bonding technology for enhanced thermal conductivity and reliability.
Designed specifically for high-power line frequency industrial applications.

Applications

Industrial motor drives
DC power transmission systems
High-power rectifier bridges

Procurement Notes

Verify the specific suffix 'YB' against the manufacturer's latest datasheet to confirm pinout compatibility and terminal specifications. Ensure that the thermal interface material selection aligns with the module's mounting requirements. Confirm that the gate drive circuitry matches the triggering characteristics defined in the official electrical parameters before integration into the final assembly design.

Selection Notes

Select this component when a combined thyristor and diode solution is required for phase-controlled or rectification circuits. The 1600 V rating suits medium-voltage industrial environments. Consider the 200 A continuous current capacity relative to the system's thermal management capabilities. The chassis mount style necessitates adequate heatsinking infrastructure for effective heat dissipation during operation.

Part Context

This part belongs to the MCMA series of silicon thyristor modules manufactured by IXYS. The series is characterized by robust construction using planar passivated chips. These modules are engineered for durability in demanding power electronics applications, offering a balance of high current handling and voltage blocking capabilities within standardized packaging formats.
