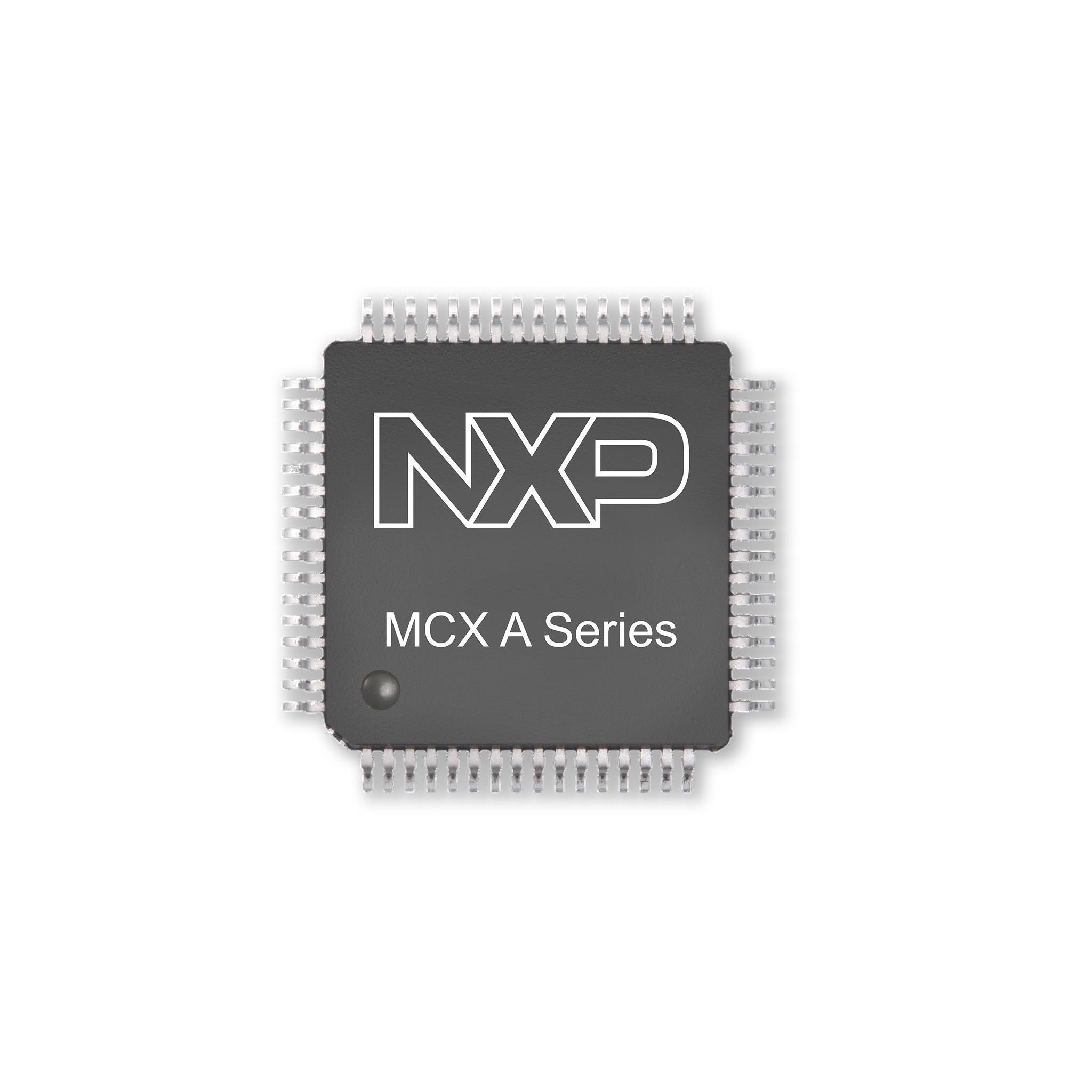

MCXA152VFT is listed in the Microcontrollers range at ChipApex. The manufacturer field lists NXP USA Inc.. Its product description is IC MCX 96MHZ SGL CORE 64KB QFN48. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for MCXA152VFT
- Description：IC MCX 96MHZ SGL CORE 64KB QFN48
- Series：MCX A
- Mfr：NXP USA Inc.
- Package：Tray
- Core Processor：ARM® Cortex®-M33
- Core Size：32-Bit Single-Core
- Speed：96MHz
- Connectivity：I2C, I3C, SPI, UART/USART, USB
- Peripherals：POR, PWM, WDT
- Number of I/O：41
- Program Memory Size：64KB (64K x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：16K x 8
- Voltage - Supply (Vcc/Vdd)：1.71V ~ 3.6V
- Data Converters：A/D 1x12b; D/A 1x8b
- Oscillator Type：External, Internal
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：48-HVQFN (7x7)
- Package / Case：-
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for MCXA152VFT
Microcontrollers Overview
The MCXA152VFT is an ARM microcontroller from the NXP MCX A series, featuring an Arm Cortex-M33 core with a maximum frequency of 96MHz. It integrates up to 64kB of flash memory and 16kB of SRAM. The device includes two ADCs, I3C, USB, and optional CAN interfaces. It operates within a temperature range of -40°C to 125°C and is housed in a 48-pin QFN package.
Microcontrollers Feature Summary
- Autonomous low-power peripherals reduce core load during sleep modes
- Innovative power architecture improves I/O utilization and energy efficiency
- Highly scalable design balances cost, performance, and power consumption
Microcontrollers Applications
- Industrial IoT sensor nodes
- Smart metering applications
- Motor control systems
Microcontrollers Procurement Notes
Verify the specific suffix VFT against official documentation to confirm pinout, packaging, and moisture sensitivity level requirements. Ensure compatibility with the MCUXpresso Developer Experience tools for software development. Confirm RoHS compliance status through the manufacturer's datasheet before finalizing procurement specifications.
Microcontrollers Selection Notes
Select this model when a balance of 96MHz processing speed and moderate storage is required. It suits designs needing integrated analog peripherals like dual ADCs and communication interfaces such as USB and I3C. Consider the 48-pin QFN package constraints for board layout and thermal management in compact industrial or consumer enclosures.
Microcontrollers Part Context
Part of the MCX A Essential series targeting cost-sensitive embedded applications. Designed to replace legacy 8/16-bit MCUs while offering enhanced connectivity and lower power consumption. Supports flexible calibration and advanced diagnostics for robust system integrity in diverse environments.
Microcontrollers Replacement Considerations
Direct substitutes include other MCXA15x variants with matching memory sizes, such as MCXA153VFT, which offers increased flash capacity. Cross-reference pinouts and peripheral availability to ensure functional equivalence without redesigning the hardware interface.
