Product Detailed Parameters
- Description：DIODE MODULE GP 800V 36A D1
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：800 V
- Current - Average Rectified (Io) (per Diode)：36A
- Voltage - Forward (Vf) (Max) @ If：1.4 V @ 100 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 mA @ 800 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：D1
- Grade：-
- Qualification：-
Download product information
Overview

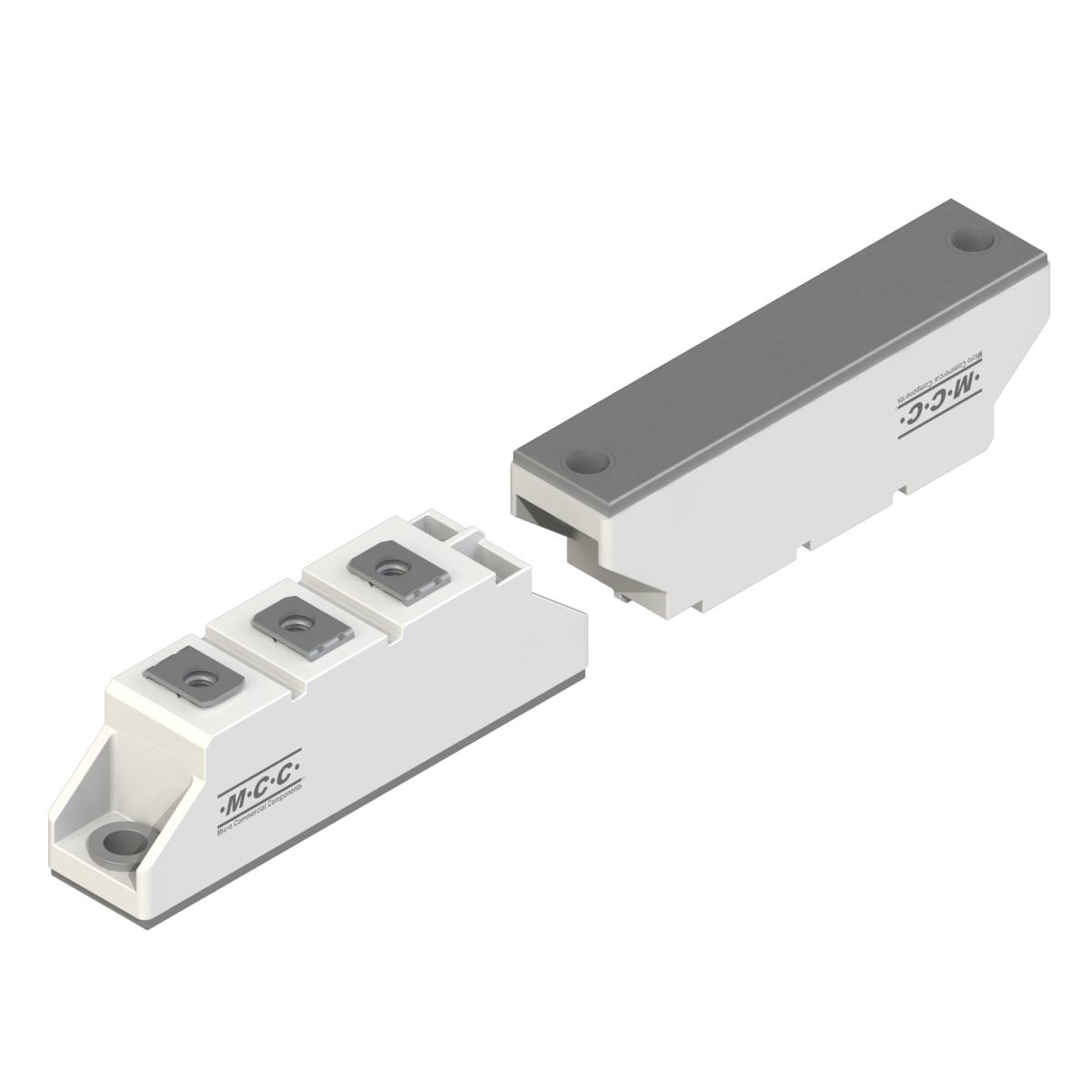

The MD36K08D1-BP is a discrete semiconductor module manufactured by Micro Commercial Components (MCC). It utilizes silicon technology and belongs to the MD36C08D1 series. The component is classified as a diode module, specifically designed for power applications. It is supplied in a bulk package configuration.
Feature Summary
- Constructed using silicon semiconductor technology
- Configured as a discrete diode module
- Designed for high-power rectification applications
Applications
- Power supply circuits
- Industrial rectification systems
- High-voltage power modules
Procurement Notes
Verify the exact part number MD36K08D1-BP against official MCC documentation to confirm specifications. Ensure compatibility with the intended circuit design before procurement. Check for RoHS compliance details in the specific datasheet. Confirm availability status through authorized distributors as stock levels may vary.
Selection Notes
Select this module based on its silicon construction and discrete diode configuration. Consider the MD36C08D1 series characteristics for similar requirements. Verify that the D1 package style meets the mechanical constraints of the target application. Ensure the manufacturer's specifications align with the system's electrical demands.
Part Context
This component is part of the broader discrete semiconductor module category from Micro Commercial Components. It shares the MD36C08D1 series designation with related variants like the MD36C08D1-BP and MD36K12D1-BP. These modules are typically used in applications requiring robust silicon-based rectification solutions.
Replacement Considerations
Publicly confirmed substitute part numbers for MD36K08D1-BP were not found in the provided source material. Consult official MCC documentation or authorized distributors for verified cross-reference information.
