Product Detailed Parameters
- Description：DIODE MODULE GP 1600V 70A D1
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1600 V
- Current - Average Rectified (Io) (per Diode)：70A
- Voltage - Forward (Vf) (Max) @ If：1.3 V @ 200 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 mA @ 1600 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：D1
- Supplier Device Package：D1
- Grade：-
- Qualification：-
Download product information
Overview

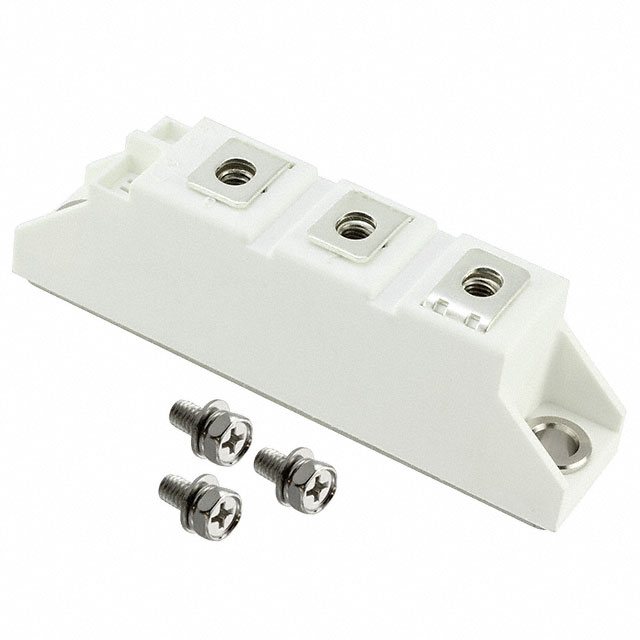

The MD70C16D1-BP is a silicon diode module manufactured by Micro Commercial Components. It features a D1 package with screw mount installation style. The device contains two diodes in series connection configuration. Key electrical parameters include a reverse voltage of 1.6 kV and a forward voltage of 1.2 V. The operating temperature range spans from -40 C to +150 C.
Feature Summary
- Dual diode structure integrated within a single discrete semiconductor module for compact circuit design.
- High thermal stability enabling operation across an extended temperature range up to 150 C.
- Robust mechanical construction utilizing screw mount installation for secure attachment.
Applications
- Industrial power conversion systems
- High voltage rectification circuits
- Power supply modules requiring isolated mounting
Procurement Notes
Verify the specific suffix BP against the manufacturer's current datasheet to confirm packaging details and compliance status. Ensure the D1 package dimensions match the target PCB or heatsink layout. Confirm that the 1.6 kV reverse voltage rating meets the peak inverse voltage requirements of the intended application circuit without exceeding absolute maximum ratings.
Selection Notes
Select this component when a dual-diode configuration is required in a high-voltage environment. The D1 package offers a balance between current handling capability and physical footprint. Consider the 1.2 V forward voltage drop for thermal management calculations. Verify compatibility with screw mount hardware specifications before integration into the final assembly.
Part Context
This part belongs to the MD70C16D1 series of discrete semiconductor modules from Micro Commercial Components. It is categorized under diode modules designed for power applications. The series typically includes variants with different voltage ratings while maintaining similar package and structural characteristics for modular design consistency.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other manufacturers' D1 package diode modules only if electrical parameters such as 1.6 kV reverse voltage and series configuration are strictly matched.
