MDMA700P1600CC

Overview

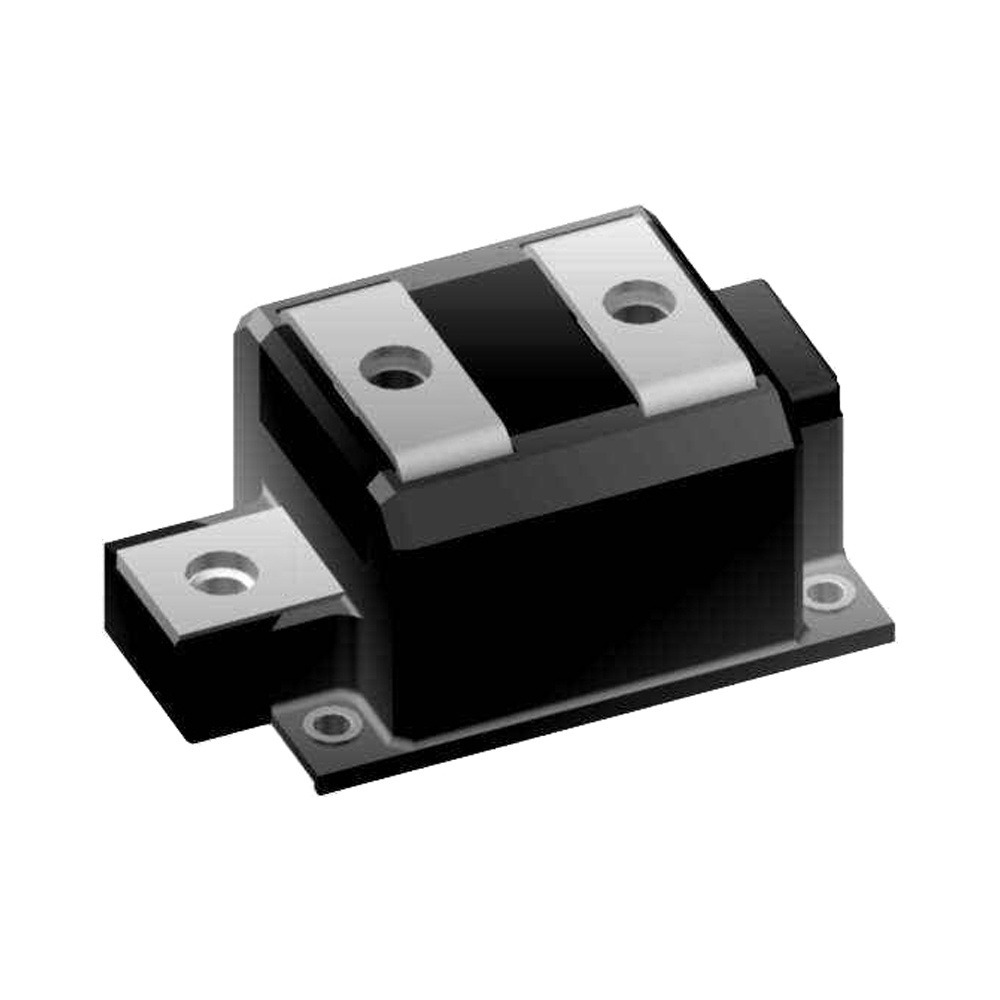

The MDMA700P1600CC is a silicon SCR module manufactured by IXYS, designed for high-power rectification applications. It features a standard rectifier configuration within a robust package suitable for industrial environments. The component operates with a rated repetitive off-state voltage of 1600V and supports an RMS on-state current of 700A. It utilizes screw mount installation for secure mechanical attachment to heat sinks. The device is compliant with RoHS directives and functions reliably across a temperature range from -40°C to +125°C.

Feature Summary

• High current handling capability with 700A RMS on-state current rating
• Robust voltage blocking performance at 1600V repetitive off-state voltage
• Standard rectifier module topology for reliable power conversion
• Wide operating temperature range supporting demanding industrial conditions

Applications

• Industrial motor drives requiring high-power rectification
• Welding equipment power supplies
• General purpose DC power supply systems
• Heavy-duty industrial machinery control circuits

Procurement Notes

Verify the specific suffix CC against official IXYS documentation to confirm exact pinout and terminal configuration. Ensure thermal management solutions match the module's power dissipation requirements. Confirm RoHS compliance status through the latest manufacturer datasheet before integration into regulated products. Validate mounting torque specifications to prevent mechanical failure during operation.

Selection Notes

Select this module when applications demand high continuous current capacity in a compact form factor. Consider the 1600V rating for medium-voltage AC input systems. Evaluate thermal resistance characteristics against available cooling infrastructure. Compare alternative packages if space constraints differ from standard mounting footprints.

Part Context

This component belongs to the IXYS MDMA series of silicon controlled rectifier modules. The series is engineered for heavy-duty industrial applications requiring durable power switching elements. IXYS designs these modules to withstand harsh electrical environments while maintaining stable performance over extended operational lifespans.

Replacement Considerations

Cross-reference part numbers with identical voltage and current ratings. Verify pin compatibility and thermal interface dimensions before substitution. Consult manufacturer obsolescence notices for potential lifecycle changes.
