Product Detailed Parameters
- Description：DIODE MOD GP 600V 100A FJ/SOT227
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：2 Independent
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io) (per Diode)：100A
- Voltage - Forward (Vf) (Max) @ If：1.4 V @ 100 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：105 ns
- Current - Reverse Leakage @ Vr：500 µA @ 600 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：SOT-227-4
- Supplier Device Package：FJ/SOT-227
- Grade：-
- Qualification：-
Download product information
Overview

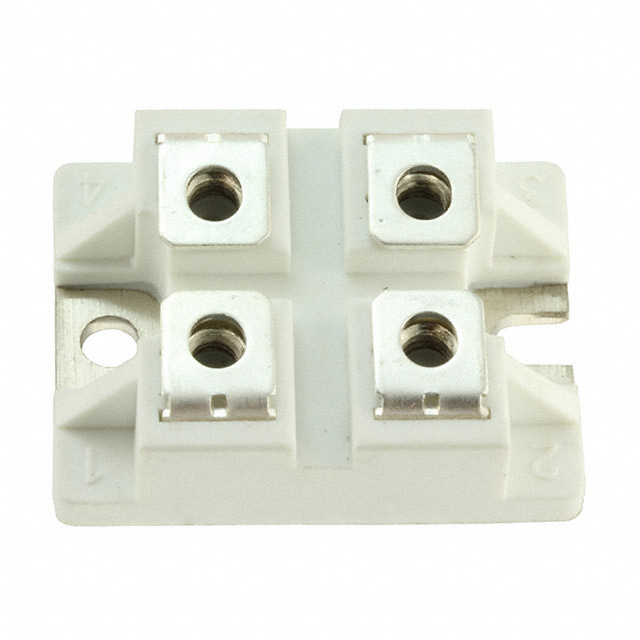

The MF200DU06FJ-BP is a silicon Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a dual parallel configuration within an FJ package, designed for screw mounting. The device supports a maximum repetitive reverse voltage of 600 V and handles an average forward current of 200 A per module at a case temperature of 90°C. Key electrical parameters include a typical forward voltage of 1.2 V at 100 A and a peak surge current capability of up to 1500 A. The junction temperature range spans from -40°C to +150°C.
Feature Summary
- Ultrafast reverse recovery time with low reverse recovery loss
- Low forward voltage drop characteristics
- High surge current capability
- Popular SOT-227 package format
Applications
- Uninterruptible Power Supply (UPS)
- Plating Power Supply
- Ultrasonic Cleaner and Welder
- Power Factor Correction (PFC) Circuit
- Converter & Chopper
- Inversion Welder
Procurement Notes
Verify the component authenticity through authorized MCC distributors or direct channels to ensure full traceability and compliance with quality standards. Confirm that the specific ordering suffix matches the required packaging quantity and specifications. Review the manufacturer's general terms and conditions regarding liability and life support usage restrictions before procurement.
Selection Notes
Select this module for high-current applications requiring fast switching speeds and robust surge handling. Ensure thermal management systems maintain the case temperature within specified limits to sustain the rated 200 A current. Verify that the circuit design accommodates the 600 V reverse voltage rating and the specific reverse recovery characteristics defined in the datasheet.
Part Context
This component belongs to the MF200DU06FJ series of FRED modules from Micro Commercial Components. It utilizes silicon technology and is housed in the FJ package style. The module is engineered for power electronics applications demanding high efficiency and reliability under significant electrical stress.
Replacement Considerations
Consult official MCC documentation for verified substitute part numbers. Do not assume compatibility based on generic specifications alone.
FAQ
What is the maximum repetitive peak reverse voltage?
The maximum repetitive peak reverse voltage (VRRM) is 600 V.
What is the recommended torque for M4 terminals?
The recommended torque for M4 terminals is between 0.6 and 1 N·m.
How does the reverse recovery time vary with junction temperature?
At TJ=25°C, trr is typically 105 ns, while at TJ=125°C, it increases to typically 200 ns under specific test conditions.
