MF200K06F2-BP

Overview

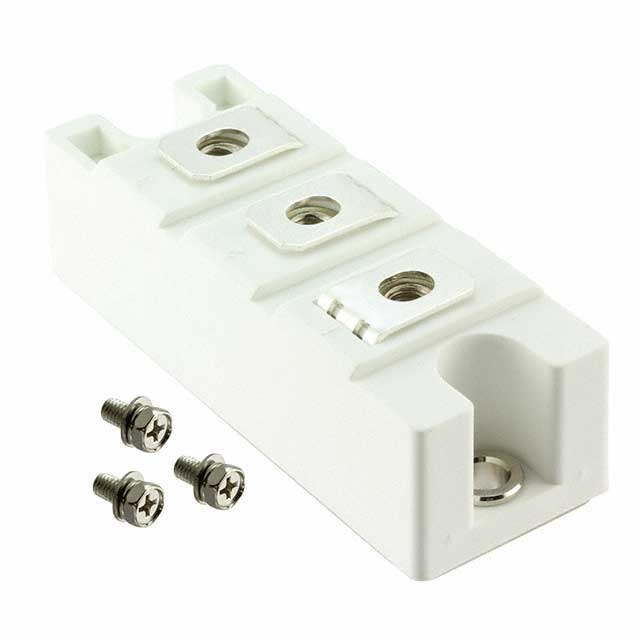

The MF200K06F2-BP is a silicon Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a single diode configuration housed in an F2 screw-mount package. The device supports a maximum repetitive reverse voltage of 600 V and conducts an average forward current of 200 A per diode at a case temperature of 110°C. Key electrical parameters include a typical forward voltage of 1.15 V at 200 A, a peak reverse recovery time of 140 ns at 25°C, and a surge current capability of 2000 A for half-cycle sine waves at 50 Hz. The module operates within a junction temperature range of -40°C to +150°C.

Feature Summary

• Soft reverse recovery characteristics with ultrafast switching speed
• Low reverse recovery loss and low forward voltage drop
• High surge current capability for robust transient handling
• Low inductance package design for efficient power conversion

Applications

• Inversion Welder
• Uninterruptible Power Supply (UPS)
• Plating Power Supply
• Ultrasonic Cleaner and Welder
• Power Factor Correction (PFC) Circuit

Procurement Notes

Verify the authenticity of the MF200K06F2-BP by purchasing exclusively from Micro Commercial Components or their authorized distributors. Counterfeit components pose significant risks; MCC does not provide warranty coverage for parts acquired through unauthorized sources. Ensure that the received units match the official datasheet specifications and packaging details before integration into critical systems.

Selection Notes

Select this component for high-frequency power applications requiring fast switching and low conduction losses. The F2 package facilitates direct chassis mounting via M6 screws, simplifying thermal management. Designers must ensure adequate heat sinking to maintain the case temperature below 110°C for rated current operation. Verify that the system's reverse voltage requirements do not exceed the 600 V rating under all operating conditions.

Part Context

This part belongs to the MF200K series of FRED modules from Micro Commercial Components. These discrete semiconductor modules are engineered for high-power density environments. The specific model utilizes silicon technology and is designed to replace older rectifier technologies in demanding industrial and commercial power electronics applications.

Replacement Considerations

Consult the official MCC datasheet for pin-compatible alternatives within the same series. Verify that any substitute device matches the 600 V reverse voltage, 200 A current rating, and F2 package dimensions to ensure mechanical and electrical compatibility without circuit redesign.

FAQ

What is the recommended torque for the M6 mounting screws?

The recommended torque for the M6 mounting screws is 5 N·m with a tolerance of ±15%.

How does the reverse recovery time vary with junction temperature?

At a junction temperature of 25°C, the typical reverse recovery time is 140 ns. At 125°C, it increases to a typical value of 230 ns under similar test conditions.

Is this component RoHS compliant?

Yes, the 'BP' suffix indicates that the device has a lead-free finish and is RoHS compliant, subject to high-temperature solder exemptions as defined by EU Directive Annex 7a.
