MF200K06F4-BP

Overview

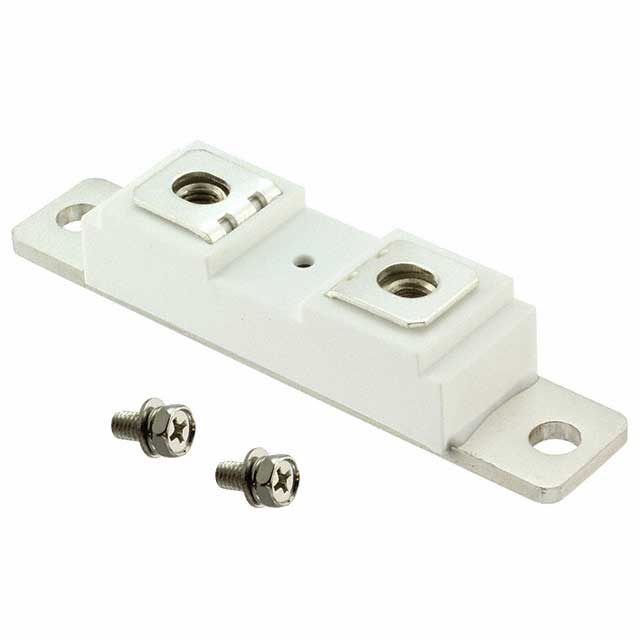

The MF200K06F4-BP is a silicon Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a single diode configuration with a maximum repetitive reverse voltage of 600 V and an average forward current rating of 200 A at a case temperature of 125°C. The device utilizes screw mount installation for secure mechanical attachment. Key electrical parameters include a typical forward voltage of 1.15 V at 100 A and a maximum reverse leakage current of 1 mA at 125°C. The module supports a junction temperature range from -40°C to +150°C and offers high surge current capability.

Feature Summary

• Soft reverse recovery characteristics designed to minimize switching losses
• Ultrafast reverse recovery time for high-frequency operation
• Low inductance package construction to reduce electromagnetic interference
• High surge current capability for robust transient performance

Applications

• Inversion Welder
• Uninterruptible Power Supply (UPS)
• Plating Power Supply
• Ultrasonic Cleaner and Welder
• Power Factor Correction (PFC) Circuit

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm compliance status, as ordering codes may indicate variations in packaging or environmental certifications. Ensure that procurement channels are authorized distributors to guarantee part authenticity and traceability. Cross-reference the full part number with the latest datasheet revision to confirm availability of technical specifications and mechanical dimensions prior to integration into design projects.

Selection Notes

Select this component for applications requiring high current handling and fast switching speeds within a modular form factor. Evaluate thermal management requirements based on the specified junction-to-case thermal resistance and power dissipation limits. Confirm that the system operating frequency aligns with the device's reverse recovery time specifications. Verify that the mounting torque specifications are met to ensure reliable electrical contact and thermal performance under operational conditions.

Part Context

This discrete semiconductor module belongs to the MF200K series of FRED modules produced by Micro Commercial Components. The series is engineered for high-power industrial applications where rapid switching and low conduction losses are critical. The module integrates silicon epitaxial diode technology into a ruggedized housing suitable for screw mounting, providing a compact solution for replacing multiple discrete components in high-current circuits.

Replacement Considerations

Consult official MCC documentation for verified substitute part numbers. Do not assume compatibility with other manufacturers' modules without verifying pinout, voltage ratings, and thermal characteristics.

FAQ

What is the maximum repetitive peak reverse voltage for the MF200K06F4?

The maximum repetitive peak reverse voltage (VRRM) is 600 V.

How does the junction temperature affect the reverse recovery time?

The reverse recovery time increases with junction temperature; it is typically 105 ns at 25°C and up to 200 ns at 125°C under specified test conditions.

What is the recommended mounting torque for the M6 screws?

The recommended mounting torque for the M6 screws is between 3 and 4.7 N·m.
