MIF400R065C2TL-BP

Overview

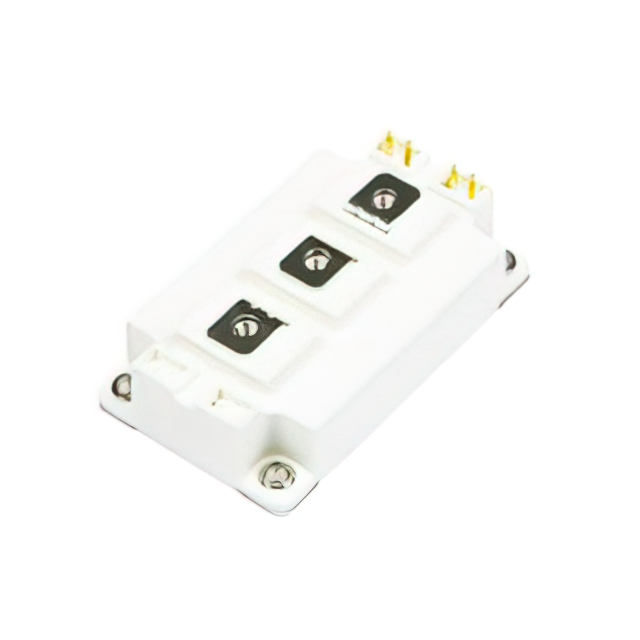

The MIF400R065C2TL-BP is a 650V, 400A IGBT module manufactured by Micro Commercial Components (MCC). It utilizes trench technology to achieve low saturation voltage and positive temperature coefficient characteristics. The module integrates an ultra-fast soft recovery anti-parallel freewheeling diode (FWD) and offers high short-circuit capability of 6 microseconds. Key electrical parameters include a maximum collector-emitter voltage of 650V, continuous collector current of 400A at Tc=100°C, and a maximum junction temperature of 175°C. The isolation voltage is rated at 2500Vrms for one minute at 50Hz.

Feature Summary

• Low VCE(sat) achieved through trench technology with a positive temperature coefficient.
• Integrated ultra-fast and soft recovery anti-parallel freewheeling diode.
• High short-circuit capability supporting up to 6 microseconds duration.
• Maximum junction temperature rating of 175°C.

Applications

• Motion and servo control systems
• High frequency switching applications
• Uninterruptible power supplies (UPS)
• Welding machines

Procurement Notes

Verify the authenticity of the MIF400R065C2TL-BP component by checking for the MCC logo, product number, and 10-digit trace code on the module surface. Ensure the ordering suffix matches the required specifications, as the 'BP' designation indicates RoHS compliance. Purchase only from authorized distributors to guarantee full traceability and avoid counterfeit parts that lack warranty coverage.

Selection Notes

Select this module for applications requiring high current handling and robust short-circuit protection. The integrated FWD simplifies circuit design by eliminating the need for external diodes. Consider the thermal resistance values when designing heat sinks, noting the specific torque requirements for module electrodes and sink mounting to ensure optimal thermal performance and mechanical stability.

Part Context

This component belongs to the MIF series of IGBT modules from Micro Commercial Components. The C2 package variant provides a standardized form factor for power electronics assemblies. The datasheet revision is Rev.4-2-02292024, indicating recent documentation updates regarding its electrical characteristics and physical dimensions within the MCC discrete and power modules portfolio.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. When evaluating alternatives, verify compatibility with the C2 package dimensions, pinout configuration, and thermal interface requirements to ensure seamless integration into existing designs without modifying the PCB layout or cooling system.

FAQ

What is the maximum short-circuit duration for the MIF400R065C2TL-BP?

The module supports a high short-circuit capability of up to 6 microseconds under specified conditions.

Does the module include an integrated freewheeling diode?

Yes, it includes an ultra-fast and soft recovery anti-parallel freewheeling diode (FWD).

What is the isolation voltage rating of the module?

The isolation voltage is 2500Vrms minimum for one minute at 50Hz.
