Product Detailed Parameters
- Description：GBT MODULES
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- IGBT Type：-
- Configuration：Half Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：2.35V @ 15V, 450A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：2307 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：25000 pF @ 25 V
Download product information
Overview

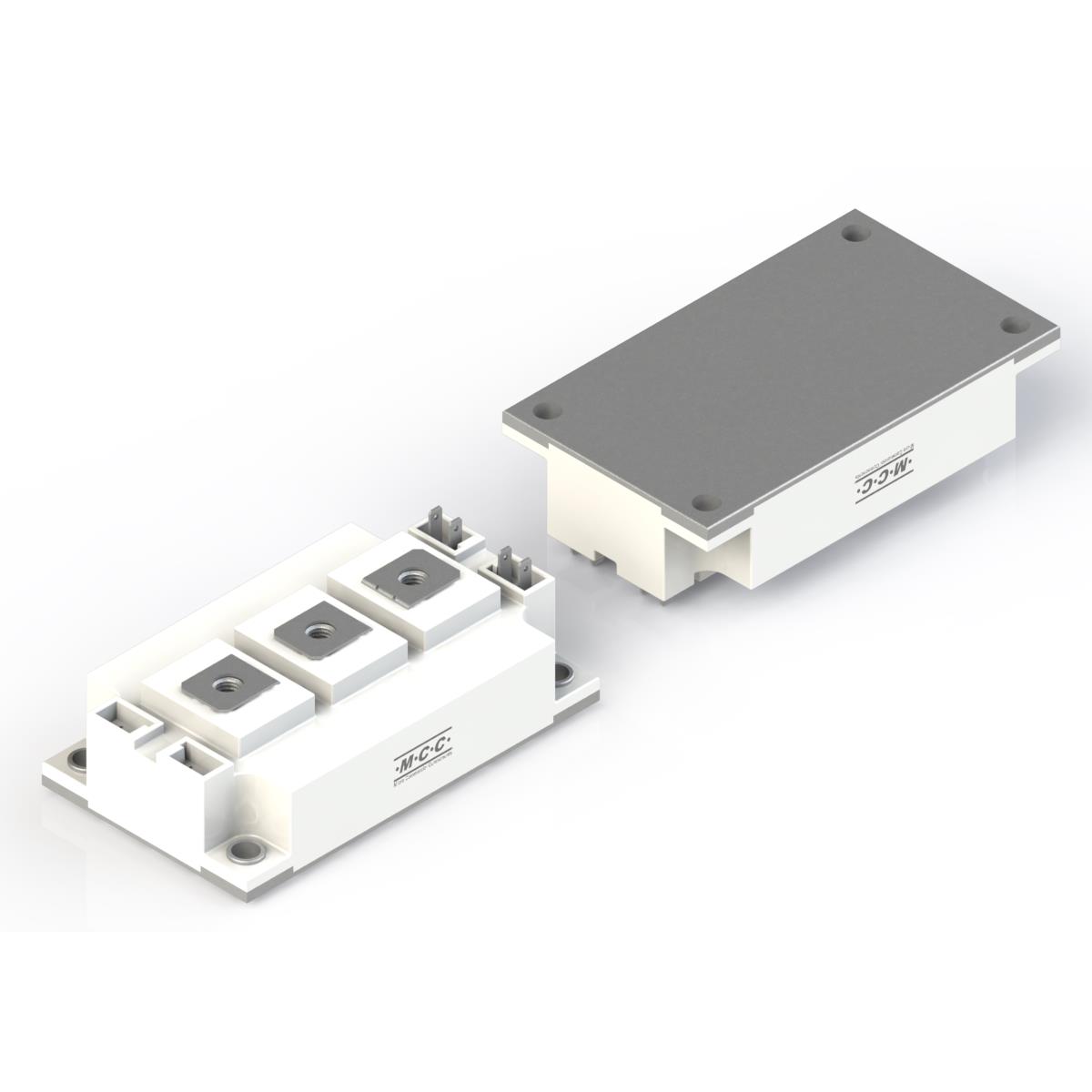

The MIF450R12C2TL-BP is a 1200V, 450A IGBT module utilizing SPT+ technology. It features a half-bridge configuration with an integrated fast and soft recovery anti-parallel freewheeling diode. The device supports a maximum junction temperature of 175°C and operates within a range of -40°C to +150°C. Key electrical parameters include a collector-emitter saturation voltage (VCE(sat)) of 1.90V at 25°C and 2.35V at 125°C under rated conditions. The module provides high short-circuit capability for up to 10 microseconds and includes low inductance structure design.
Feature Summary
- Low VCE(sat) achieved through SPT+ technology
- Positive temperature coefficient for VCE(sat)
- Integrated fast and soft recovery anti-parallel FWD
- High short circuit capability (10us)
Applications
- Inverter for Motor Drive
- AC and DC Servo Driver Amplifier
- UPS (Uninterruptible Power Supplies)
- Soft Switching Welding Machine
Procurement Notes
Verify the authenticity of the MIF450R12C2TL-BP by purchasing directly from Micro Commercial Components or authorized distributors to ensure traceability and quality standards. Confirm that the 'BP' suffix indicates RoHS compliance as specified in the ordering information. Check for updated datasheet revisions before integration into designs.
Selection Notes
Select this module for applications requiring high current handling and robust short-circuit protection. Ensure thermal management systems can handle the specified thermal resistance values. Verify gate drive requirements align with the ±20V maximum rating and typical operating voltages. Consider the package dimensions and torque specifications for mechanical mounting compatibility.
Part Context
This component belongs to the MIF450R12C2TL series of IGBT modules manufactured by Micro Commercial Components. It is designed for power conversion and control applications. The specific part number includes a '-BP' suffix which denotes RoHS compliant packaging and finish according to the manufacturer's ordering information.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching voltage, current, and package specifications with other manufacturers' offerings.
FAQ
What is the maximum junction temperature for the MIF450R12C2TL-BP?
The maximum junction temperature is 175°C.
Does the module include a freewheeling diode?
Yes, it includes a fast and soft recovery anti-parallel freewheeling diode.
What is the short-circuit capability duration?
The module has a high short-circuit capability of 10 microseconds.
