MIF75R12C1PF-BP

Overview

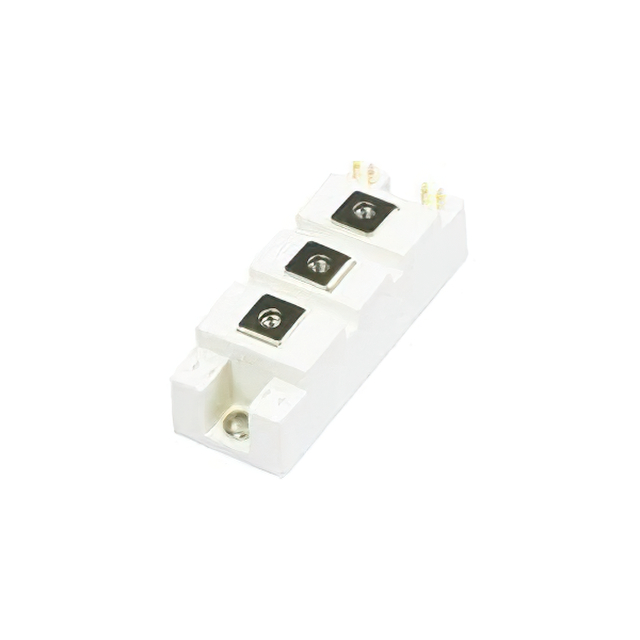

The MIF75R12C1PF-BP is a silicon IGBT module manufactured by Micro Commercial Components (MCC). It features a 1200V collector-emitter voltage rating and a continuous collector current of 75A at TC=80°C. The device utilizes NPT technology for high-speed switching and includes an ultra-fast soft recovery anti-parallel freewheeling diode. Key electrical parameters include a maximum junction temperature of 150°C, a typical VCE(sat) of 2.9V at 25°C, and a short-circuit capability of 10µs. The module provides an isolation voltage of 2500V and weighs approximately 150g.

Feature Summary

• High speed IGBT in NPT Technology
• Low switching losses
• High short circuit capability (10us)
• Including Ultra Fast & Soft Recovery Anti-parallel FWD
• Low Inductance
• Maximum Junction Temperature 150℃
• Epoxy Meets UL 94 V-0 Flammability Rating

Applications

• High Frequency Drivers
• Solar Inverters
• UPS (Uninterruptible Power Supplies)
• Electric Welding Machine

Procurement Notes

Verify the component authenticity through authorized MCC distributors or direct procurement channels to ensure traceability and compliance with quality standards. Confirm that the ordering suffix 'BP' corresponds to RoHS compliant packaging as specified in official documentation. Check for any specific handling requirements related to the bulk packaging configuration before finalizing orders.

Selection Notes

Select this module for applications requiring robust short-circuit protection and low switching losses. Ensure thermal management systems can handle the specified power dissipation and maintain junction temperatures within the 150°C limit. Verify gate drive compatibility with the recommended ±15V operating range and check mechanical fit for the required mounting torque specifications.

Part Context

This part belongs to the MIF75R12C1PF series of IGBT modules from Micro Commercial Components. It is designed for industrial power conversion applications where reliability and efficiency are critical. The module integrates both the IGBT switch and the freewheeling diode in a single package to minimize parasitic inductance and improve overall system performance.

Replacement Considerations

Consult official MCC documentation for verified pin-to-pin compatible alternatives. Ensure any substitute matches the 1200V voltage rating, 75A current capacity, and 150°C maximum junction temperature. Verify that the replacement module offers similar switching characteristics and thermal resistance values to maintain system design integrity.
