Product Detailed Parameters
- Description：IGBT MODULES 1200V 50A, E2A
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- IGBT Type：-
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 50A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：E2A
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：288 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2.6 nF @ 25 V
Download product information
Overview

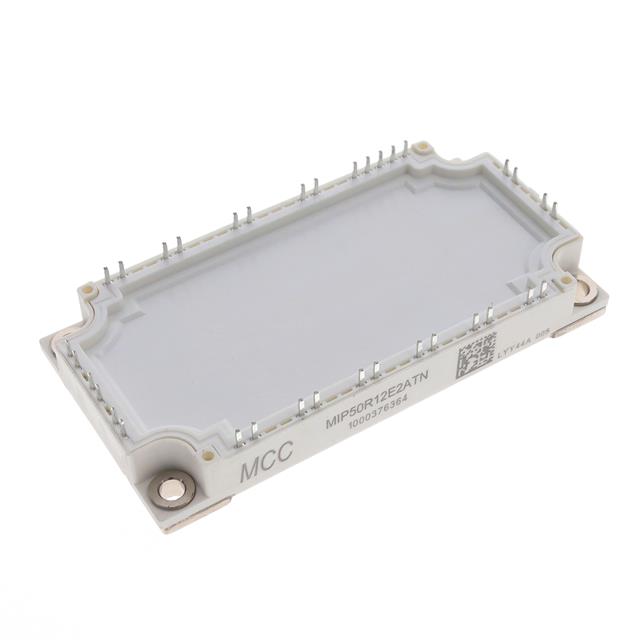

The MIP50R12E2ATN-BP is a 1200V, 50A IGBT module manufactured by Micro Commercial Components. It integrates an inverter leg with a brake-chopper and a rectifier diode. Key electrical parameters include a collector-emitter saturation voltage of 1.9V at 50A and 25°C, and a maximum junction temperature of 175°C. The module features a short-circuit capability of 200A for 10μs and includes an NTC thermistor for thermal monitoring. Stray inductance is rated at 60nH, and the total power dissipation is 288W.
Feature Summary
- Low switching losses and low Vce(sat) with positive temperature coefficient
- Includes fast and soft recovery anti-parallel freewheeling diodes
- High short circuit capability up to 10 microseconds
- Low inductance case design
Applications
- Motor Drivers
- AC and DC Servo Drive Amplifier
- UPS (Uninterruptible Power Supplies)
Procurement Notes
Verify authenticity through authorized MCC distributors or direct purchase from Micro Commercial Components Corp. Counterfeit parts pose significant risks; unauthorized sources do not provide warranty coverage. Confirm RoHS compliance via the 'BP' suffix designation. Ensure ordering matches the specific E2A configuration for inverter, chopper, and rectifier integration.
Selection Notes
Select this module for applications requiring integrated braking and rectification functions within a single package. Consider the 175°C maximum junction temperature for high-thermal environments. Verify gate drive requirements against the specified threshold voltages and ensure adequate heat sinking given the 288W power dissipation rating. Check stray inductance constraints for high-speed switching designs.
Part Context
This component belongs to the MIP50R12E2ATN series of IGBT modules from Micro Commercial Components. It is designed as a comprehensive power solution combining multiple semiconductor functions. The series targets industrial motor control and power supply applications where space efficiency and thermal performance are critical.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching voltage, current, and pinout specifications with other manufacturers' three-phase inverter modules with integrated braking.
FAQ
What is the maximum short-circuit withstand time?
The module supports a short-circuit capability of 10 microseconds.
Does the module include thermal protection components?
Yes, it includes an NTC thermistor for temperature monitoring.
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
