MIP75R12E2ATN-BP

Overview

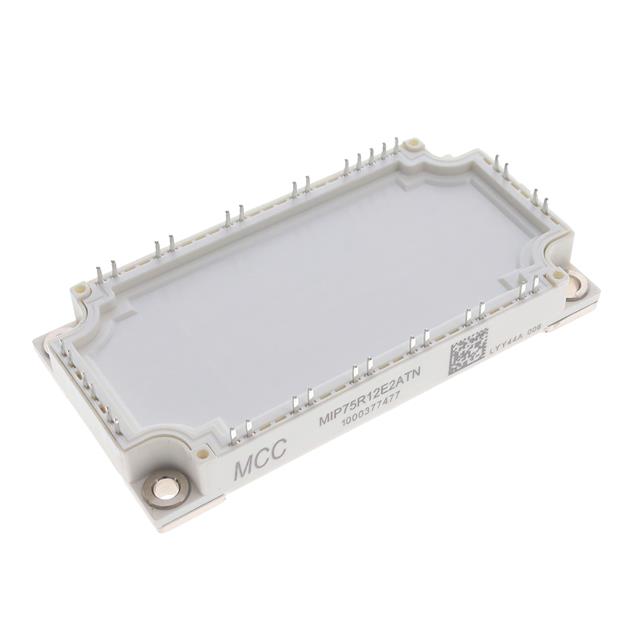

The MIP75R12E2ATN-BP is a six-pack IGBT module manufactured by Micro Commercial Components (MCC). It integrates three inverter legs, two brake-chopper legs, and one rectifier diode. The device features a 1200V collector-emitter voltage rating with a continuous collector current of 75A for the inverter configuration. Key electrical parameters include a maximum short-circuit withstand time of 10μs at 300A and a maximum junction temperature of 175°C. The module incorporates an integrated NTC thermistor for thermal monitoring and utilizes a low-inductance case design to minimize switching losses.

Feature Summary

• Low switching losses combined with low Vce(sat) exhibiting a positive temperature coefficient
• Integration of fast and soft recovery anti-parallel freewheeling diodes
• High short circuit capability supporting up to 10 microseconds duration
• Low inductance case structure designed for high-frequency performance

Applications

• Motor Drivers
• AC and DC Servo Drive Amplifiers
• Uninterruptible Power Supplies (UPS)

Procurement Notes

Verify component authenticity through authorized MCC distributors or direct procurement channels. Counterfeit prevention measures are strictly enforced; unauthorized sources do not provide warranty coverage. Confirm RoHS compliance via the BP suffix designation. Ensure storage conditions align with manufacturer handling standards to maintain product integrity prior to assembly.

Selection Notes

Select this module for applications requiring integrated braking choppers and rectification within a single package. Verify that the system's thermal management can handle the specified power dissipation values at the target operating temperature. Ensure gate drive voltages remain within the ±20V limit. Confirm that the required short-circuit protection timing falls within the 10μs capability window.

Part Context

This component belongs to the MIP75R12E2ATN series from Micro Commercial Components. It represents a silicon-based IGBT technology solution designed for medium-power industrial electronics. The E2A variant specifically denotes the internal circuit topology including the rectifier and chopper functions.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the specific six-pack topology, voltage ratings, and pinout configurations with alternative manufacturers' datasheets.
