Product Detailed Parameters
- Description：IGBT MODULES
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- IGBT Type：-
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 75A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：476 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2600 pF @ 25 V
Download product information
Overview

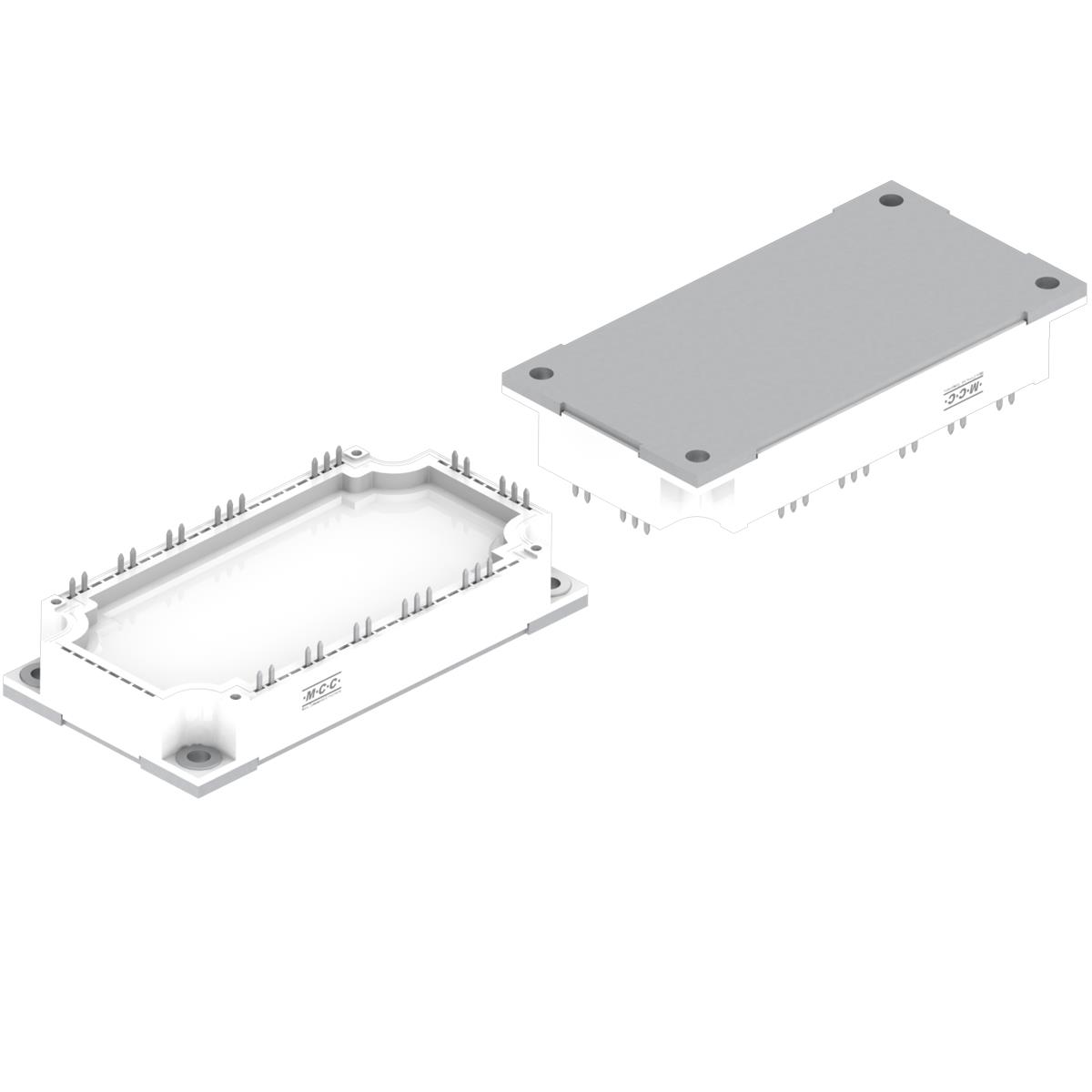

The MIP75R12E2TN-BP is a silicon IGBT module manufactured by Micro Commercial Components (MCC). It features a half-bridge topology with an integrated fast and soft recovery anti-parallel freewheeling diode. The device supports a collector-emitter voltage of 1200V and a continuous collector current of 75A at 25°C, with a maximum junction temperature of 175°C. Key electrical parameters include a typical Vce(sat) of 1.95V at 75A and 25°C, and short-circuit withstand capability of 300A for 10μs. The module includes an NTC thermistor for thermal monitoring.
Feature Summary
- Low switching losses combined with low Vce(sat) exhibiting a positive temperature coefficient
- High short circuit capability rated for 10 microseconds duration
- Integrated fast and soft recovery anti-parallel freewheeling diode
- Low inductance case design to minimize stray inductance effects
Applications
- Motor Drivers
- AC and DC Servo Drive Amplifier
- UPS (Uninterruptible Power Supplies)
Procurement Notes
Verify the authenticity of the component through authorized MCC distributors or direct procurement channels. Counterfeit prevention measures are critical; ensure traceability matches manufacturer standards. Confirm RoHS compliance via the "BP" suffix designation before integration into regulated assemblies.
Selection Notes
Select this module for applications requiring high short-circuit ruggedness and low conduction loss. Ensure the thermal management system can handle the specified thermal resistance values. Verify that the gate drive voltage range aligns with the ±20V maximum rating and that the operating frequency accommodates the switching energy characteristics.
Part Context
This component belongs to the MIP75R12E2TN series from Micro Commercial Components. It is part of a family of silicon-based power modules designed for industrial power conversion. The specific model integrates advanced IGBT chip technology with improved connection methods to support high-performance switching applications.
Replacement Considerations
Direct substitutes require matching 1200V/75A ratings, half-bridge topology, and compatible pinout dimensions. Verify thermal resistance and package mounting force specifications to ensure mechanical compatibility without redesigning the heatsink interface.
FAQ
What is the maximum short-circuit withstand time?
The module supports a short-circuit withstand time of up to 10 microseconds under specified conditions.
Does the module include thermal protection components?
Yes, the module integrates an NTC thermistor for temperature monitoring and thermal management.
What is the flammability rating of the epoxy used?
The epoxy material meets the UL 94 V-0 flammability rating standard.
