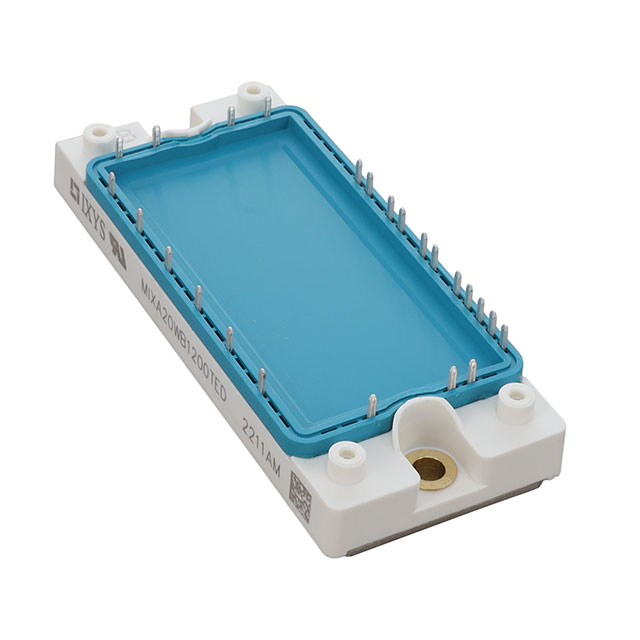

MIXA20WB1200TED

Description：IGBT MODULE 1200V 28A 100W E2
Series：-

SKU:d4d72d5ec974 Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 28A 100W E2
Series：-
Mfr：IXYS
Package：Box
IGBT Type：PT
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 16A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：E2
Supplier Device Package：E2
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：28 A
Power - Max：100 W
Current - Collector Cutoff (Max)：1.5 mA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA20WB1200TED

Overview

The MIXA20WB1200TED is a silicon-based IGBT module from the IXYS MIXA20WB1200 series, utilizing XPT technology. It features a three-phase inverter configuration with screw mount installation in an E2-Pack housing. The device supports a maximum collector-emitter voltage of 1.2 kV and a gate-emitter voltage limit of 20 V. Continuous collector current ratings are specified at 17 A and 28 A under standard conditions. Power dissipation capabilities range from 60 W to 100 W depending on thermal conditions. The saturation voltage is 1.8 V, with a gate-emitter leakage current of 500 nA. Operating temperatures span from -40 C to +125 C.

Feature Summary

XPT technology integration for enhanced performance
Three-phase inverter topology design
Screw mount mechanical interface

Applications

Converter systems
Brake circuits
Inverter modules

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm RoHS compliance status via current datasheets. Check for end-of-life notices as some listings indicate restricted availability. Ensure packaging matches bulk specifications. Validate part number suffixes against official documentation to confirm functional equivalence.

Selection Notes

Select this module for applications requiring 1.2 kV blocking capability and moderate current handling. Evaluate thermal management requirements based on the 60 W to 100 W power dissipation range. Consider the E2-Pack form factor for compatibility with existing screw-mount heatsink solutions. Verify gate drive voltage limits do not exceed 20 V.

Part Context

This component belongs to the MIXA20WB1200 series of IGBT modules manufactured by IXYS. The series utilizes XPT technology for improved switching characteristics. Other variants in the family include different current ratings such as MIXA10WB1200 and MIXA30WB1200, sharing similar voltage ratings and package styles.

Replacement Considerations

MIXA20WB1200TML serves as a related variant within the same series. Cross-reference electrical parameters and pin configurations before substitution. Verify if package differences between E1 and E2 packs affect mechanical integration.
