MLX90818LXE-BBG-016-RE

Pressure Sensors Transducers Overview

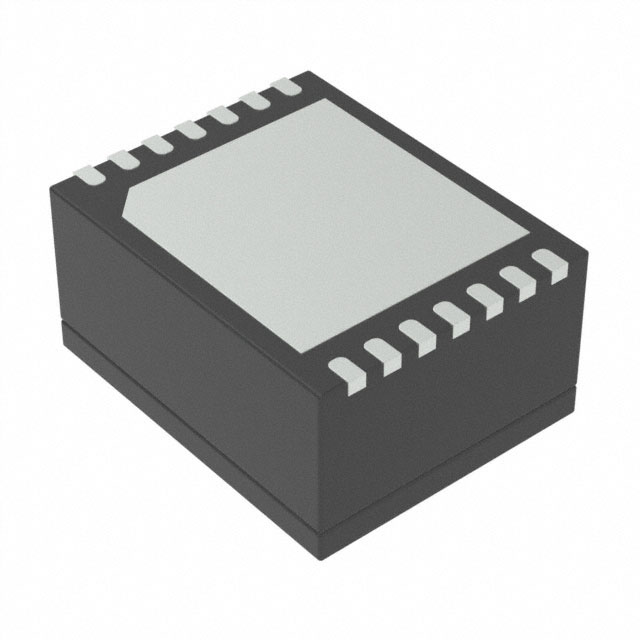

The MLX90818LXE-BBG-016-RE is an absolute pressure sensor from the Melexis Triaxis series, designed for non-harsh media applications. It features a SENT output interface with 16-bit resolution and operates within a pressure range of 1.45 PSI to 43.51 PSI (10 kPa to 300 kPa). The device provides high accuracy of ±0.5% and includes integrated temperature compensation. It functions on a supply voltage of 4.5V to 5.5V and is housed in a 14-BFDFN package with exposed pads.

Pressure Sensors Transducers Feature Summary

• Integrated temperature compensation for stable performance across operating conditions
• SENT digital output interface providing 16-bit resolution data
• Factory calibrated absolute pressure sensing capability

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC pressure monitoring
• Automotive tire pressure monitoring
• Medical gas equipment

Pressure Sensors Transducers Procurement Notes

Verify that the specific suffix '-RE' matches the required reel packaging configuration against the official datasheet specifications. Confirm that the application environment remains within the specified non-harsh media constraints to ensure long-term reliability and accurate calibration retention over the operational lifetime.

Pressure Sensors Transducers Selection Notes

Select this component when a digital SENT interface is required for high-resolution pressure measurement up to 300 kPa. Ensure the system design accommodates the 14-BFDFN surface mount package dimensions and the 4.5V to 5.5V power supply requirements. Verify compatibility with the host controller's ability to decode SENT protocol signals.

Pressure Sensors Transducers Part Context

This part belongs to the MLX90818 family of absolute pressure sensors manufactured by Melexis Technologies NV. The Triaxis platform integrates the silicon piezoresistive element with signal conditioning circuitry on a single die. This specific model variant utilizes the BFDFN package style optimized for automated surface-mount assembly processes.

Pressure Sensors Transducers Replacement Considerations

Cross-reference with other MLX90818 variants having different pressure ranges or output interfaces if system requirements change. Verify pinout and electrical characteristics before substituting with any alternative pressure sensor models.
