MMO74-16IO6

Overview

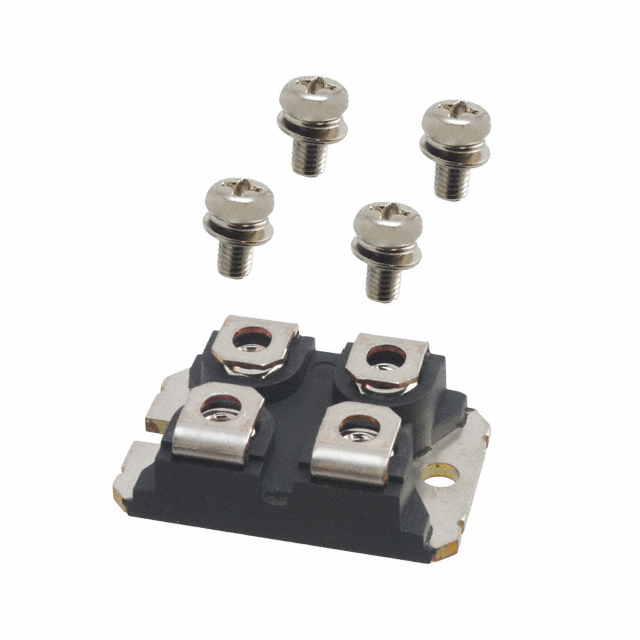

The IXYS MMO74-16IO6 is a dual thyristor module designed for high-power AC control applications. It features a reverse voltage rating of 1600 V and supports a non-repetitive peak on-state current of 650 A, with a continuous output current of 40 A. The device operates within a temperature range of -40°C to +150°C and utilizes the SOT-227B package for screw mounting.

Feature Summary

• Dual thyristor configuration for efficient AC phase control
• High surge current capability up to 650 A
• Robust thermal performance with a maximum junction temperature of 150°C

Applications

• Industrial motor speed drives
• AC power regulation systems
• Heating control equipment

Procurement Notes

Verify component authenticity through authorized IXYS distributors or certified partners. Request official datasheets and RoHS compliance documentation prior to purchase. Ensure storage conditions align with semiconductor handling standards to maintain device integrity and operational reliability.

Selection Notes

Select this module for applications requiring precise AC phase control with moderate current levels. The 1600 V rating suits medium-voltage industrial environments. Consider thermal management requirements due to the 150°C operating limit and ensure adequate heatsinking for the SOT-227B package.

Part Context

This component belongs to the IXYS MMO series of AC controller modules. It integrates two thyristors in a single compact package, offering a space-saving solution for power electronics designs compared to discrete components. The series is engineered for reliability in demanding industrial settings.

Replacement Considerations

Cross-reference with other IXYS dual thyristor modules such as the MMO62-16IO6 for lower current needs. Verify pinout compatibility and thermal resistance specifications when substituting with equivalent products from other manufacturers.
