MMSD485B

$0.05

Description：DIODE STANDARD SOD123
Series：-
Mfr：onsemi
Package：Bulk

SKU:30e69b668fe7 Category: Single Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MMSD485B is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE STANDARD SOD123. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for MMSD485B

Description：DIODE STANDARD SOD123
Series：-
Mfr：onsemi
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：-
Current - Average Rectified (Io)：-
Voltage - Forward (Vf) (Max) @ If：-
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：-
Capacitance @ Vr, F：-
Mounting Type：Surface Mount

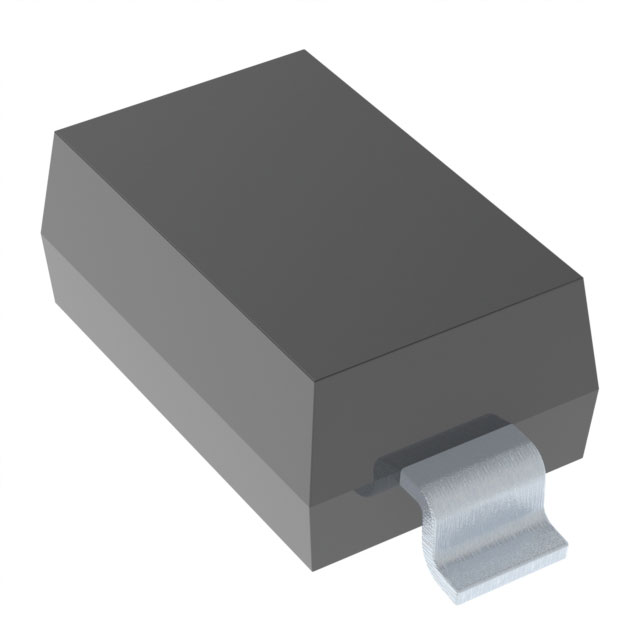

Package / Case：SOD-123
Supplier Device Package：SOD-123
Operating Temperature - Junction：150°C (Max)
Grade：-
Qualification：-

Single Diodes datasheet and documents for MMSD485B

MMSD485B

Single Diodes Overview

The MMSD485B is a general-purpose surface mount switching diode manufactured by onsemi. It is housed in an SOD-123 package and features a peak reverse voltage of 100 V. The device supports a maximum forward current of 200 mA and can withstand a surge current of 4 A.

Single Diodes Feature Summary

General-purpose switching diode design
Surface mount construction for automated assembly

Single Diodes Applications

General purpose rectification circuits
Signal switching applications

Single Diodes Procurement Notes

Verify component status carefully as the MMSD485B is classified as obsolete and no longer manufactured. Source replacement parts from authorized distributors only. Confirm that substitute components meet all original electrical specifications including voltage ratings and package dimensions before integration into designs.

Single Diodes Selection Notes

Select verified substitutes such as the MMSD4148T1G which maintains similar electrical characteristics. Ensure the replacement part matches the required SOD-123 footprint and meets the 100 V reverse voltage and 200 mA forward current requirements specified for the original component.

Single Diodes Part Context

This component belongs to onsemi's small signal switching diode portfolio, designed for general-purpose rectification and signal processing tasks. It utilizes standard semiconductor manufacturing processes to provide reliable performance in compact electronic assemblies requiring efficient current control.
