MMUN2212

Overview

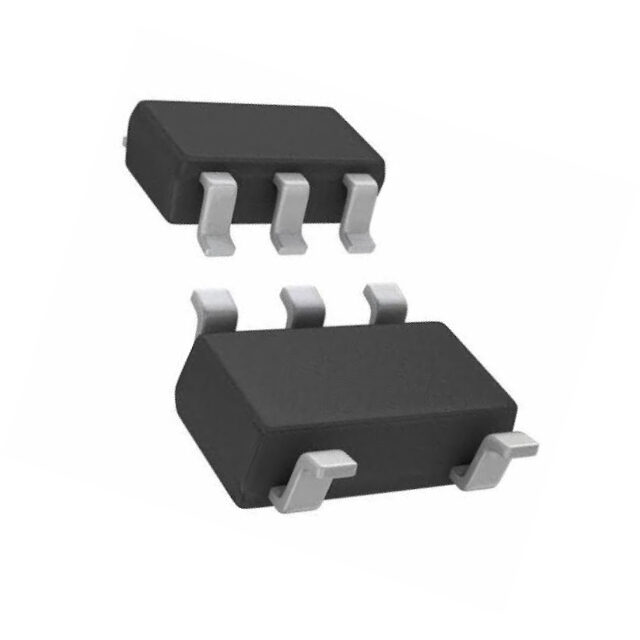

The MMUN2212 is a dual NPN bipolar junction transistor integrated into a single surface-mount package, manufactured by Shenzhen SLKORMicro Semicon Co., Ltd. This component functions as a discrete equivalent to digital transistors with built-in bias resistors, simplifying circuit design by reducing external component count. It is housed in an SOT-363 (SC-88) package, suitable for space-constrained applications. The device provides high current capability and efficient operation at low logic levels, making it appropriate for switching and amplification tasks in consumer electronics and portable devices.

Feature Summary

• Integrated dual NPN configuration within a compact surface-mount package
• Built-in bias resistors eliminate the need for external components
• Designed for low-voltage logic level switching applications

Applications

• General-purpose switching circuits
• Logic level translation interfaces
• Portable electronic device control

Procurement Notes

Verify the manufacturer designation Shenzhen SLKORMicro Semicon Co., Ltd. against official datasheets or authorized distributor catalogs. Confirm the package type is SOT-363 and check for RoHS compliance status. Ensure the part number matches exactly, as suffixes may indicate tape-and-reel packaging variations. Cross-reference with original equipment manufacturer specifications to confirm functional equivalence before procurement.

Selection Notes

Select this component when a dual NPN switch with integrated biasing is required in a minimal footprint. Compare electrical characteristics such as DC current gain and saturation voltage against alternative discrete transistor pairs. Consider thermal performance and maximum voltage ratings relative to the specific circuit load. Verify availability from authorized channels to ensure quality consistency.

Part Context

The MMUN2212 belongs to the family of integrated resistor-transistor networks, specifically designed as replacements for discrete NPN transistor configurations. It serves as a cost-effective and space-saving solution for manufacturers designing compact printed circuit boards. Similar parts in this category often include PNP variants or different resistance values, but the MMUN2212 is distinctively configured for dual NPN applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided reference data. Engineers should consult manufacturer cross-reference guides or authorized distributor databases for compatible equivalents. Verify pinout compatibility and electrical parameter tolerances before substituting any alternative component.
