MNS2-9-W2-PS-DP-LPO

$279.79

Description：SENSOR 0.07PSID
Series：-
Mfr：Monnit Corporation
Package：Bulk

SKU:f00fe808f612 Category: Pressure Sensors, Transducers Brand: Monnit Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SENSOR 0.07PSID
Series：-
Mfr：Monnit Corporation
Package：Bulk
Applications：-
Pressure Type：Differential
Operating Pressure：-0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa)
Output Type：-
Output：-
Accuracy：±3%
Voltage - Supply：2.7V ~ 3.8V
Port Size：-
Port Style：Barbed
Features：-
Termination Style：-
Maximum Pressure：14.5PSI (100kPa)
Operating Temperature：-40°C ~ 85°C
Mounting Type：-
Package / Case：IoT Finished Device
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

MNS2-9-W2-PS-DP-LPO

Overview

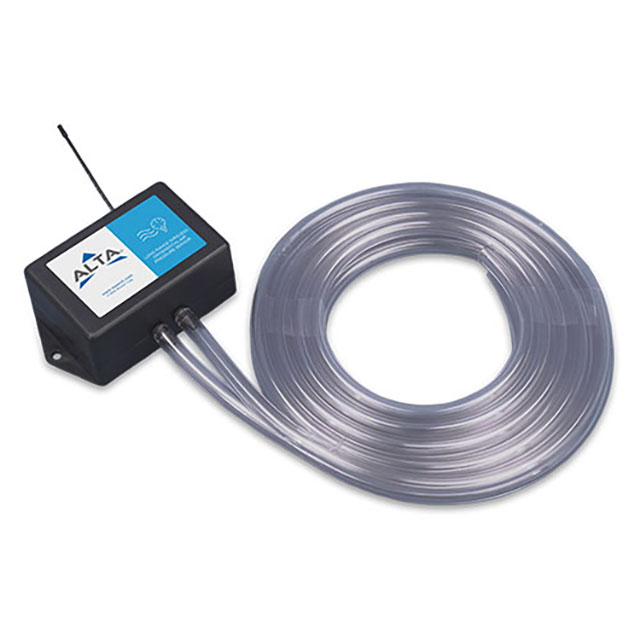

The Monnit MNS2-9-W2-PS-DP-LPO is an ALTA wireless differential air pressure sensor operating at 900 MHz. It measures pressure differences between two input ports and transmits data to the iMonnit platform. The device supports line power with battery backup, ensuring continuous operation during power outages. It features a barbed port style for secure tubing connections. The unit operates within a temperature range of -40°C to 85°C and withstands maximum pressures of 14.5 PSI (100 kPa).

Feature Summary

Measures differential pressure between two input ports.
Supports line power with battery backup for reliability.
Utilizes Frequency-Hopping Spread Spectrum for interference immunity.

Applications

HVAC system monitoring
Cleanroom pressure validation
Filtration system status tracking

Procurement Notes

Verify component authenticity through authorized channels. Confirm that the specific model designation matches the required line power configuration with battery backup. Check for recent product change notices or obsolescence announcements from the manufacturer before finalizing procurement plans.

Selection Notes

Select this model when line-powered operation with backup is required for critical infrastructure monitoring. Ensure the application environment stays within the specified -40°C to 85°C operational temperature range. Verify that the 14.5 PSI maximum pressure rating aligns with the system's peak differential pressure requirements.

Part Context

This component belongs to the Monnit ALTA series of IoT finished devices. It is designed for industrial environments requiring reliable wireless transmission of physical measurements. The model integrates sensing elements with wireless communication capabilities in a single enclosure.
