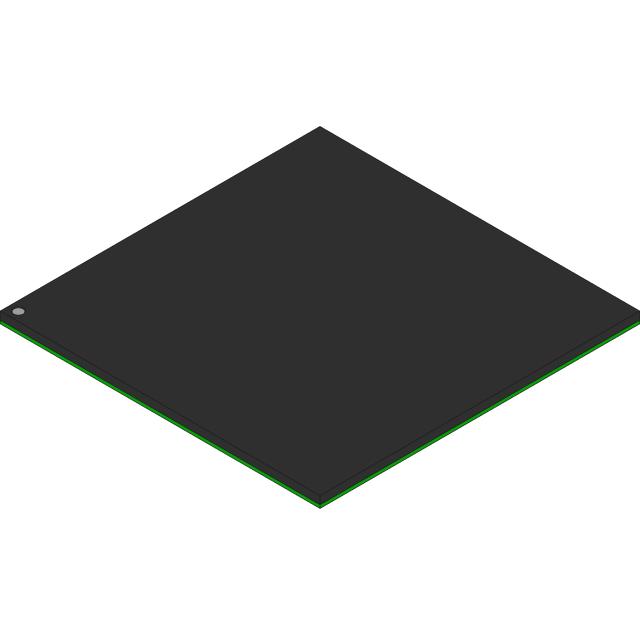

MPC8245LVV333D

Overview

The MPC8245LVV333D is a microprocessor IC from the MPC82xx series, manufactured by NXP Semiconductors. It features a single-core PowerPC 603e processor with a 32-bit data bus width and operates at a maximum clock frequency of 333 MHz. The device is housed in a 352-TBGA (35x35) package designed for surface mount installation. It supports an operating supply voltage range of 1.9 V to 2.2 V and includes 16 kB L1 instruction cache and 16 kB L1 data cache. The component functions within a temperature range of -40°C to +105°C and utilizes 3.3 V I/O voltage levels.

Feature Summary

• Integrates a high-performance PowerPC 603e superscalar processor core with floating-point capabilities
• Includes a dedicated SDRAM controller supporting up to 2 GB memory capacity
• Features a 32-bit PCI interface compatible with PCI 2.2 specifications
• Provides integrated communication peripherals including UART and I2C interfaces

Applications

• Network infrastructure systems such as routers and switches
• Telecommunications embedded applications
• Network storage solutions
• Image display systems

Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm RoHS compliance and moisture sensitivity level requirements during handling. Validate pin compatibility and thermal characteristics against original design specifications before integration into new hardware platforms.

Selection Notes

Select this component for designs requiring a 333 MHz PowerPC 603e core with integrated PCI and SDRAM control. Ensure system power supplies match the 1.9 V to 2.2 V operating range. Consider the 352-TBGA package constraints for PCB layout and thermal management strategies suitable for industrial temperature ranges.

Part Context

This part belongs to the MPC82xx family of integrated host processors designed for cost-sensitive and space-constrained embedded markets. These processors combine processing power with peripheral integration to reduce system component counts. The MPC8245 variant specifically targets network and telecommunications applications requiring robust I/O capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
