MPM280 17 A 0 L 1 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Micro Sensor. Its product description is SENSOR 2900.75PSIA. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for MPM280 17 A 0 L 1
- Description：SENSOR 2900.75PSIA
- Series：-
- Mfr：Micro Sensor
- Package：Can
- Applications：-
- Pressure Type：Absolute
- Operating Pressure：2900.75PSI (20000kPa)
- Output Type：Analog Voltage
- Output：-
- Accuracy：-
- Voltage - Supply：10V
- Port Size：Cell w/Body O-Ring
- Port Style：No Port
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：4351.13PSI (30000kPa)
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for MPM280 17 A 0 L 1
Pressure Sensors Transducers Overview

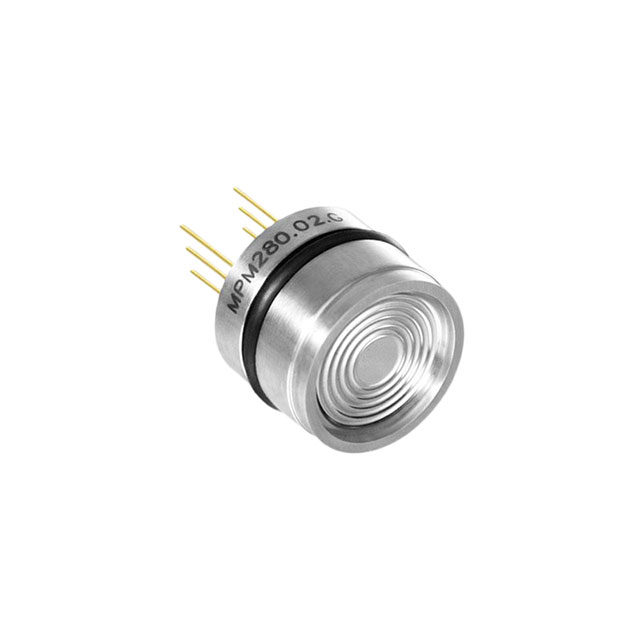

The MPM280 17 A 0 L 1 is a piezoresistive pressure sensor manufactured by Micro Sensor. It features a stainless steel 316L housing and an isolated corrugated diaphragm design. The device measures absolute pressure with a range of 0 to 2900.75 PSI (0 to 20000 kPa). It provides an analog voltage output and operates within a temperature range of -40°C to 125°C. The unit utilizes PC termination style for connectivity.
Pressure Sensors Transducers Feature Summary
- Constructed with 316L stainless steel for long-term stability
- Isolated structure suitable for various fluid media
- Piezoresistive silicon oil-diffused sensing element
Pressure Sensors Transducers Applications
- OEM industrial applications requiring corrosion resistance
- Hydraulic and pneumatic system monitoring
- Fluid medium measurement in harsh environments
Pressure Sensors Transducers Procurement Notes
Verify the specific suffix codes against official Micro Sensor documentation to confirm pressure type, output signal, and connection details. Ensure the operating temperature and pressure ratings align with your system requirements before procurement.
Pressure Sensors Transducers Selection Notes
Select this model when absolute pressure measurement is required up to 20 MPa. The 316L stainless steel construction makes it suitable for corrosive environments. Confirm the analog voltage output compatibility with your data acquisition system.
Pressure Sensors Transducers Part Context
The MPM280 series comprises piezoresistive OEM pressure sensors designed for robust performance. This specific variant belongs to the sealed gauge or absolute pressure category, utilizing a flexible construction that allows for diverse mounting and production configurations compared to general pressure sensors.
Pressure Sensors Transducers Replacement Considerations
Consult Micro Sensor official documentation for direct substitutes. Cross-reference part numbers based on identical pressure ranges, output types, and physical dimensions to ensure functional equivalence.
