MPP8002K5200-4

Overview

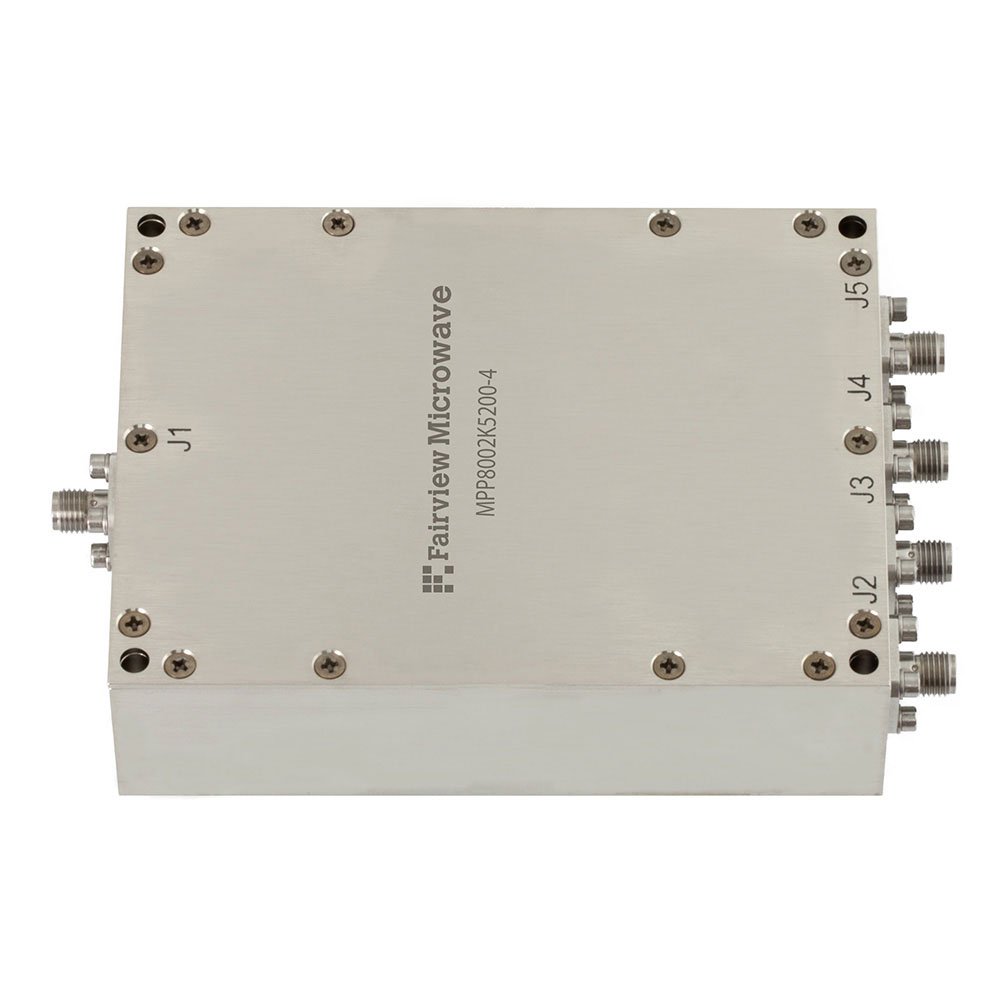

The MPP8002K5200-4 is a signal conditioning component manufactured by Fairview Microwave, classified as an RF IC within the combiners subcategory. It functions as a 4-way broadband combiner designed for radio frequency applications. The device features SMA interface connectors and operates across a specified frequency range from 800 MHz to 2.5 GHz. This component is intended for use in systems requiring signal combination within this specific bandwidth.

Feature Summary

• Four-way power combining capability for signal conditioning
• Broadband operational performance covering 800 MHz to 2.5 GHz
• SMA connector interface for standard RF integration

Applications

• RF signal distribution networks
• Broadband communication system integration
• Signal conditioning hardware assembly

Procurement Notes

Verify the exact datasheet specifications directly with Fairview Microwave or authorized distributors before procurement. Confirm that the SMA interface and 800 MHz to 2.5 GHz frequency range align with your system requirements. Ensure compatibility with existing RF infrastructure and check for any specific handling or storage guidelines provided in the official product documentation.

Selection Notes

Select this model when a four-way combiner is required for frequencies between 800 MHz and 2.5 GHz. The SMA interface dictates mating cable and connector choices. Consider the physical size and weight constraints if integrating into compact assemblies. Verify thermal management needs based on the expected power levels within the operating band.

Part Context

This part belongs to Fairview Microwave's signal conditioning portfolio, specifically within the combiners category. It is categorized under RF ICs and filters in distributor classifications. The MPP8002K5200-4 is distinct from other models like the MPP8004K2200-4, which covers a higher frequency range up to 4.2 GHz, highlighting the importance of matching the specific frequency span to the application.
