MPXHZ6116A6T1

Pressure Sensors Transducers Overview

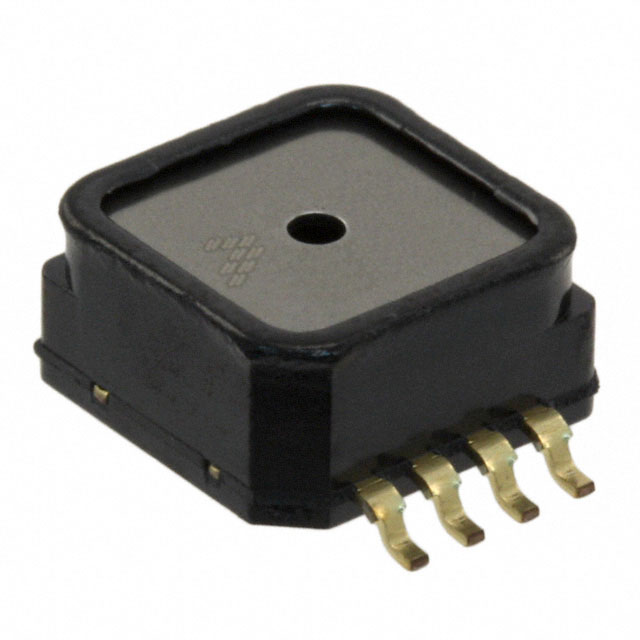

The MPXHZ6116A6T1 is an absolute pressure sensor manufactured by STMicroelectronics, formerly NXP. It features a working pressure range of 2.9 PSI to 58.02 PSI (20 kPa to 400 kPa) and a maximum pressure rating of 232.06 PSI (1600 kPa). The device provides an analog voltage output ranging from 0.2 V to 4.8 V with a supply voltage of 4.64 V to 5.36 V. It has an accuracy of ±1.5% and operates within a temperature range of -40°C to 125°C. The component is housed in an 8-SOIC package with a top port.

Pressure Sensors Transducers Feature Summary

• Integrates on-chip signal conditioning and temperature compensation for accurate readings across the operating range.
• Features a durable thermoplastic surface mount package designed for board mounting applications.
• Delivers a high-level analog signal proportional to applied pressure, suitable for microprocessor-based systems.

Pressure Sensors Transducers Applications

• Industrial process control
• HVAC systems
• Automotive tire pressure monitoring

Pressure Sensors Transducers Procurement Notes

Verify the manufacturer designation as STMicroelectronics, reflecting the transition of NXP MEMS sensor products. Confirm the specific suffix A6T1 corresponds to the 8-SSOP package and tape-and-reel delivery format. Ensure compatibility with the required 4.64 V to 5.36 V supply voltage and check for RoHS3 compliance status prior to ordering.

Pressure Sensors Transducers Selection Notes

Select this component for applications requiring absolute pressure measurement up to 400 kPa. The integrated temperature compensation simplifies system design by eliminating external calibration needs. The analog voltage output is directly compatible with standard ADC inputs. Consider the 8-SOIC footprint for PCB layout constraints and verify the top-port configuration suits the fluid interface requirements.

Pressure Sensors Transducers Part Context

This part belongs to the MPXH6400A series of industrial pressure sensors. The product line integrates bipolar op-amp circuitry and thin-film resistor networks on a silicon die. These sensors combine advanced micro-machining techniques with thin-film metallization to provide reliable performance in harsh environments.

Pressure Sensors Transducers Replacement Considerations

MPXH6400AC6T1
