MPXM2053D

Pressure Sensors Transducers Overview

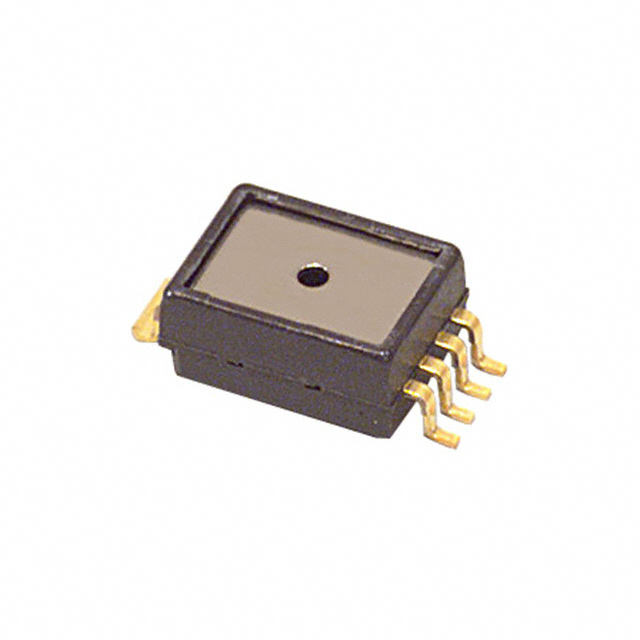

The MPXM2053D is a differential piezoresistive pressure sensor designed for surface mount applications. It features a rectangular MPAK-8 package and operates with a supply voltage of 10V to 16V. The device measures differential pressures up to 7.25 PSI (50 kPa) with an output signal ranging from 0mV to 40mV at 10V excitation. It includes laser trimming for precise span and offset calibration, along with temperature compensation across a working temperature range of -40°C to 125°C. The sensor exhibits high accuracy within -0.6% to 0.4% and withstands maximum pressures of 29.01 PSI (200 kPa).

Pressure Sensors Transducers Feature Summary

• Laser trimmed for precise span and offset calibration.
• Integrated temperature compensation for stable performance.
• Piezoresistive sensing element with Wheatstone bridge output.

Pressure Sensors Transducers Applications

• Board mounting in industrial systems.
• Surface mount electronic assemblies requiring pressure monitoring.
• Applications necessitating calibrated differential pressure measurement.

Pressure Sensors Transducers Procurement Notes

Verify the current manufacturer status as the component may be listed as obsolete or end-of-life by original producers such as NXP or STMicroelectronics. Confirm availability through authorized distributors or specialized semiconductor brokers like Rochester Electronics. Ensure that the specific package variant matches the required surface mount footprint and pin configuration for the target design.

Pressure Sensors Transducers Selection Notes

Select this component for designs requiring a compact, surface-mountable differential pressure sensor with built-in calibration. Consider the 5-SMD module package and operating voltage range when designing the interface circuitry. Evaluate the temperature compensation requirements against the specified -40°C to 125°C operational range to ensure environmental suitability.

Pressure Sensors Transducers Part Context

The MPXM2053D belongs to the MPX series of pressure sensors, originally developed by Motorola and later transferred to Freescale and NXP Semiconductors. This series utilizes piezoresistive technology for robust pressure detection. The part is often cross-referenced with similar models in the MPXM family, sharing common packaging and functional characteristics for industrial sensing applications.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes include MPX2053D and MPXM2053GS. Verify compatibility with existing board layouts and electrical specifications before substitution.
