MPXM2102GST1

Pressure Sensors Transducers Overview

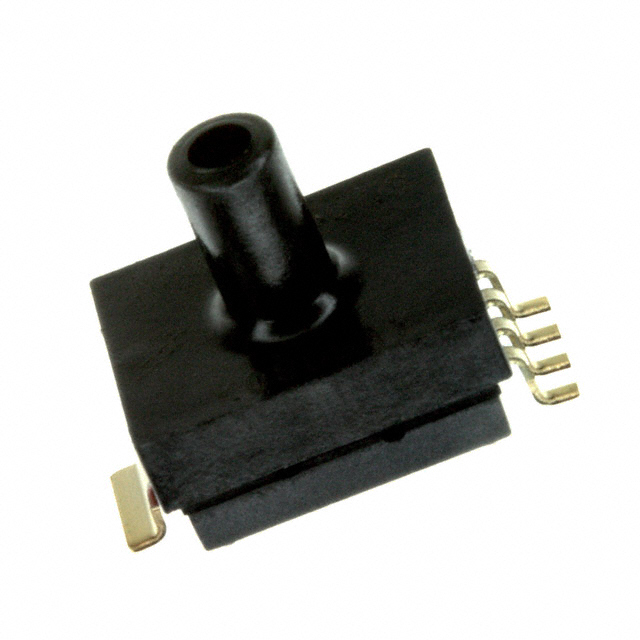

The MPXM2102GST1 is a temperature-compensated vented gauge pressure sensor designed for board-mounted applications. It measures operating pressure up to 14.5 PSI (100 kPa) with a maximum pressure rating of 58.02 PSI (400 kPa). The device features an analog output ranging from 0mV to 40mV at 10V supply, utilizing a Wheatstone bridge configuration. It operates within a voltage range of 10V to 16V and functions across a temperature range of -40°C to 125°C. The component is housed in a 5-SMD module package.

Pressure Sensors Transducers Feature Summary

• Temperature compensation ensures stable performance across varying thermal conditions.
• Vented gauge design allows atmospheric reference for accurate relative pressure measurement.
• Analog Wheatstone bridge output provides direct signal interfacing capabilities.

Pressure Sensors Transducers Applications

• Board-mounted industrial pressure monitoring systems
• HVAC pressure sensing applications
• Automotive pneumatic system monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix GST1 against official NXP documentation to confirm the exact package variant and pinout configuration. Ensure compatibility with the required 10V-16V supply range and validate that the vented gauge pressure type aligns with the target application's atmospheric exposure requirements before finalizing procurement.

Pressure Sensors Transducers Selection Notes

Select this component when a temperature-compensated analog pressure sensor is required for board-level integration. The 14.5 PSI working pressure range suits low-pressure pneumatic monitoring. Consider the 5-SMD surface mount package for automated assembly processes and verify that the analog output resolution meets the system's signal conditioning needs.

Pressure Sensors Transducers Part Context

This part belongs to the MPX2102 series of pressure sensors manufactured by NXP USA Inc. The series includes various packages and pressure ratings, with the MPXM2102GST1 specifically designated as a vented gauge sensor. It shares core technology with other MPX variants but differs in packaging and port configuration.

Pressure Sensors Transducers Replacement Considerations

MPXM2102ASX offers similar electrical characteristics but utilizes a different package style. Verify mechanical fit and pin compatibility before substitution. Cross-reference with MPXM2102A for alternative surface-mount options if the GST1 variant is unavailable.
