MSCDC300A170AG

Overview

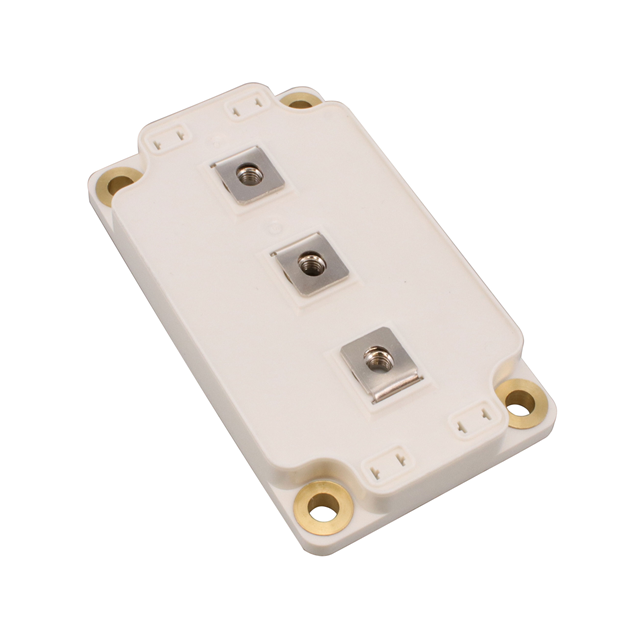

The MSCDC300A170AG is a silicon carbide Schottky diode module manufactured by Microchip Technology. It features a phase leg configuration with a reverse voltage rating of 1.7 kV and a forward current capacity of 300 A. The device exhibits a forward voltage drop of 1.5 V at rated current. Designed for screw mount installation, it operates within a temperature range of -40°C to +125°C. The component utilizes SP6C packaging and is classified under discrete power modules.

Feature Summary

• Utilizes silicon carbide technology for high-temperature operation
• Provides phase leg configuration for power conversion circuits
• Features screw mount installation style for robust mechanical connection

Applications

• Industrial motor drives
• Uninterruptible power supplies
• Solar inverters

Procurement Notes

Verify the specific suffix AG against official Microchip documentation to confirm package and thermal characteristics. Confirm RoHS compliance status through the manufacturer's environmental declaration. Ensure the SP6C mounting interface matches the system design requirements before procurement.

Selection Notes

Select this component for applications requiring high current handling in phase leg topologies. The 1.7 kV rating suits medium-voltage systems. Verify that the screw mount method aligns with the available heatsinking infrastructure. Consider the 300 A continuous current capability relative to the thermal management solution.

Part Context

This part belongs to the Microchip silicon carbide Schottky diode module family. It shares the SP6C package form factor with other variants in the series. The product line targets high-efficiency power electronics requiring wide bandgap semiconductor advantages.

Replacement Considerations

Consult official substitution guides for compatible phase leg modules. Verify electrical ratings and pin compatibility for any alternative components.
