MSCDC450A170AG

Overview

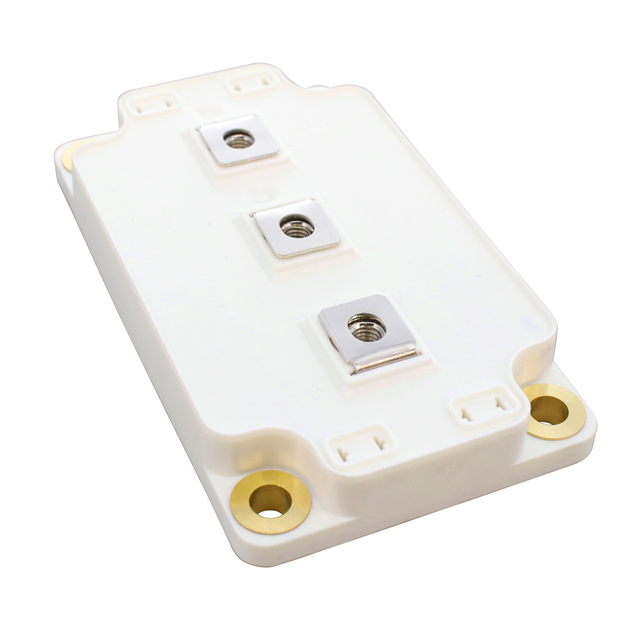

The MSCDC450A170AG is a Silicon Carbide (SiC) Schottky Barrier Diode module manufactured by Microchip Technology. It features a Phase Leg configuration within an SP6C package designed for screw mount installation. The device supports a reverse voltage of 1.7 kV and a forward current of 450 A, with a forward voltage drop of 1.5 V. It operates reliably within a temperature range from -40°C to +125°C.

Feature Summary

• Utilizes Silicon Carbide technology for high-temperature stability and superior switching performance
• Integrates a phase leg structure optimized for power conversion applications
• Designed for robust mechanical attachment via screw mounting in the SP6C package

Applications

• High-power industrial motor drives
• Uninterruptible power supply systems
• Renewable energy inverters

Procurement Notes

Verify component authenticity through authorized Microchip distributors or certified partners. Confirm RoHS compliance status using official documentation. Ensure storage conditions align with semiconductor handling standards to maintain reliability before assembly.

Selection Notes

Select this module for applications requiring high current capacity and elevated thermal tolerance. The SiC material offers advantages over silicon in high-frequency environments. Verify that the system design accommodates the specific thermal management requirements associated with the SP6C package form factor.

Part Context

This component belongs to Microchip's portfolio of discrete and power modules, specifically categorized under SiC Schottky Diode Modules. It serves as a critical power switching element within broader electronic systems, contributing to efficiency improvements in modern power electronics architectures.

Replacement Considerations

Consult official Microchip documentation for verified substitute part numbers. Cross-reference electrical parameters such as voltage ratings and current capabilities when evaluating alternative components.
