MSPD1013-122

Overview

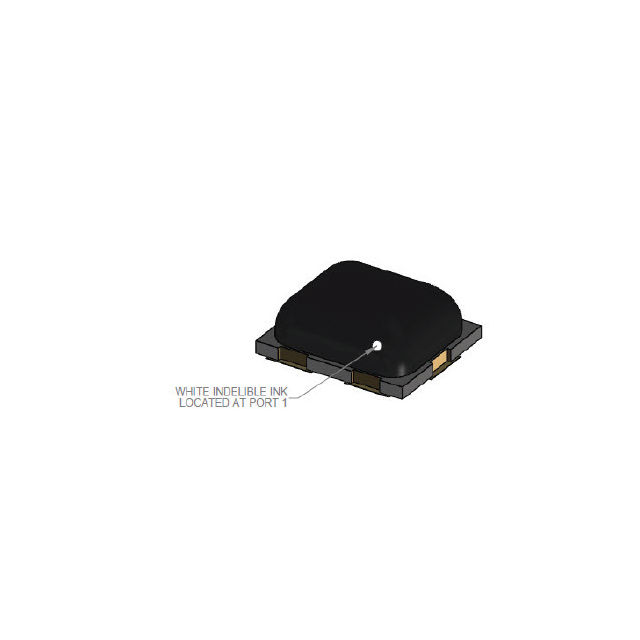

The MSPD1013-122 is a frequency detector manufactured by MACOM Technology Solutions, designed for general-purpose RF and microwave applications. It operates within a frequency range of 10 MHz to 20 GHz. The component features a low-profile surface mount package with dimensions of 3.3 mm in length, 2.8 mm in width, and 1.5 mm in height. It supports a minimum operating temperature of -55°C. This SMD-5P IC provides superior signal performance suitable for demanding environments.

Feature Summary

• Compact surface mount design with low profile dimensions
• Operates as a frequency detector across 10 MHz to 20 GHz
• Provides superior RF and microwave signal performance

Applications

• Test and instrumentation systems
• Machine-to-machine communications
• Wireless LAN networks

Procurement Notes

Verify the specific ordering suffix and package type when sourcing. Confirm that the component meets the required temperature specifications for your application environment. Ensure compatibility with existing PCB layouts due to the specific SMD-5P footprint. Cross-reference manufacturer documentation for any recent updates to the datasheet or pin configuration.

Selection Notes

Select this component for applications requiring frequency detection within the 10 MHz to 20 GHz range. Consider the compact SMD-5P package for space-constrained designs. Evaluate thermal requirements against the -55°C minimum operating temperature specification. Ensure the general-purpose nature aligns with the specific signal integrity needs of the target system.

Part Context

MACOM Technology Solutions specializes in high-performance semiconductor products for telecommunications, industrial, defense, and data center industries. The MSPD1013-122 falls under their portfolio of RF and microwave components, supporting diverse applications from consumer electronics to critical industrial systems. The company focuses on delivering reliable solutions for modern connectivity and sensing challenges.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements through official MACOM channels or authorized distributors to ensure functional equivalence.
