Product Detailed Parameters
- Description：DIODE ARRAY GP 600V 20A ITO220AB
- Series：-
- Mfr：Good-Ark Semiconductor
- Package：Tube
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io) (per Diode)：20A
- Voltage - Forward (Vf) (Max) @ If：2.2 V @ 20 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：50 ns
- Current - Reverse Leakage @ Vr：5 µA @ 600 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Through Hole

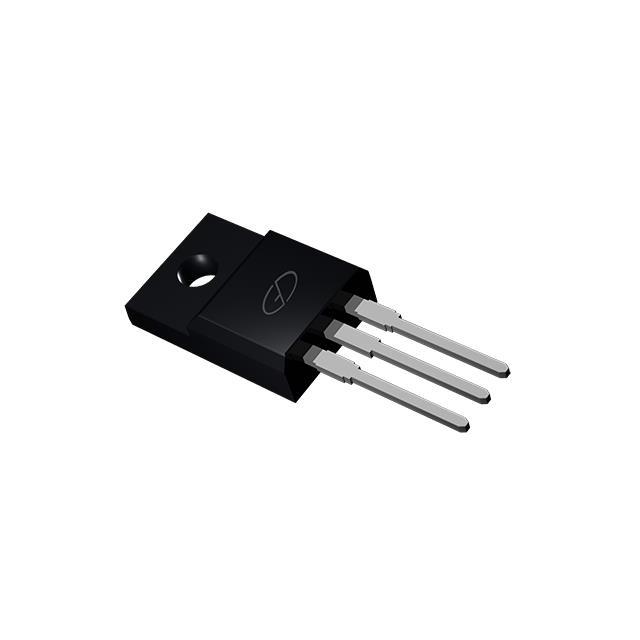

- Package / Case：TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package：ITO-220AB
- Grade：-
- Qualification：-
Download product information
Overview
The MUR2060FCT is a 20.0 Ampere insulated common cathode ultra-fast recovery rectifier manufactured by Good-Ark Semiconductor. It features a maximum repetitive peak reverse voltage of 600 Volts and operates within a junction temperature range of -55°C to +175°C. The device utilizes an epoxy compound meeting UL 94 V-0 flammability ratings and is available in the TO-263AB (D2PAK) package.
Feature Summary
- Insulated common cathode configuration for dual-element applications
- Ultra-fast recovery characteristics suitable for high-frequency switching
- Epoxy compound complies with UL 94 V-0 flammability classification
Applications
- High frequency inverters
- Free wheeling diodes
- Polarity protection circuits
Procurement Notes
Verify the manufacturer designation on the component marking, as Good-Ark Semiconductor produces this part alongside other vendors like Thinki Semiconductor. Confirm the specific suffix matches the required insulation and package type. Ensure the ordering documentation aligns with the 600V rating and 20A current capacity specifications defined in the official datasheet.
Selection Notes
Select this component for designs requiring an insulated common cathode arrangement to simplify thermal management and circuit layout. The ultra-fast recovery profile makes it appropriate for high-frequency power conversion systems where low reverse recovery charge is critical. Verify that the TO-263AB package fits the available PCB footprint and thermal dissipation requirements.
Part Context
This component belongs to the MUR series of ultra-fast recovery rectifiers from Good-Ark Semiconductor. It is distinct from standard fast recovery diodes due to its specialized insulation and common cathode topology. The product line targets industrial and automotive power supplies requiring robust performance under high thermal stress.
Replacement Considerations
Compatible substitutes include MUR2060CT and MUR2060FP. Verify pinout compatibility and thermal resistance values when swapping between different manufacturers such as Micro Commercial Components or Yangzhou Yangjie Electric.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is +175°C.
Does the MUR2060FCT feature an insulated case?
Yes, it is an insulated common cathode rectifier designed for improved thermal isolation.
What is the reverse voltage rating?
The maximum repetitive peak reverse voltage is 600 Volts.
