MUR2X100A10

Overview

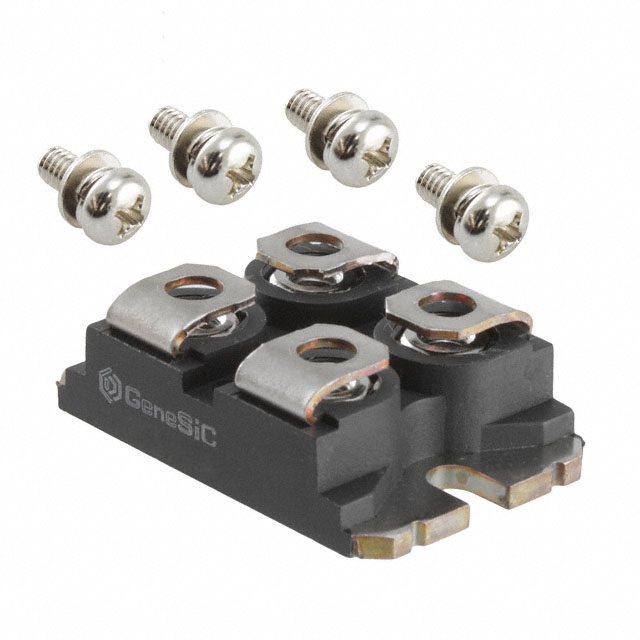

The MUR2X100A10 is a super fast recovery rectifier module manufactured by GeneSiC Semiconductor. It features an average forward current of 200 A and a maximum repetitive peak reverse voltage of 1000 V. The device utilizes an SOT-227 isolation type package with an electrically isolated base plate. Key electrical parameters include a maximum instantaneous forward voltage of 2.35 V per leg, a peak forward surge current of 1600 A, and a maximum reverse recovery time of 125 ns. The operating temperature range spans from -55 °C to +175 °C.

Feature Summary

• High surge capability for robust transient handling
• Electrically isolated base plate for safety
• Not ESD sensitive during handling

Applications

• High power DC/DC converters
• Induction heating systems
• Uninterruptible power supplies (UPS)
• Motor drive circuits

Procurement Notes

Verify the manufacturer origin carefully, as GeneSiC Semiconductor has undergone corporate restructuring and acquisition. Confirm that the specific batch matches the required thermal resistance and isolation voltage specifications. Ensure the SOT-227 package dimensions align with your heatsink interface requirements before finalizing procurement orders.

Selection Notes

Select this component when high voltage blocking capability combined with high current capacity is required in a single module. The SOT-227 package provides a compact solution for applications needing electrical isolation. Consider the 125 ns reverse recovery time for switching frequency limitations compared to Schottky alternatives.

Part Context

This part belongs to the MUR2X series of silicon super fast recovery rectifiers designed for high-power industrial applications. The series offers various voltage ratings while maintaining consistent current handling capabilities within the SOT-227 form factor.

Replacement Considerations

MUR2X100A12
