Product Detailed Parameters
- Description：DIODE ARRAY GP 600V 15A TO-263AC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io) (per Diode)：15A
- Voltage - Forward (Vf) (Max) @ If：1.25 V @ 15 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：55 ns
- Current - Reverse Leakage @ Vr：10 µA @ 600 V
- Operating Temperature - Junction：-55°C ~ 175°C
- Mounting Type：Surface Mount
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263AC
- Grade：-
- Qualification：-
Download product information
Overview

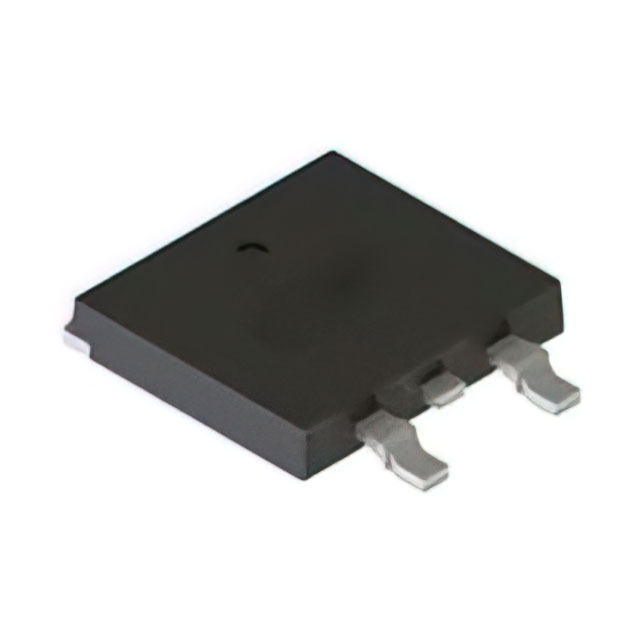

The MURBF3060CT-TP is a 30 Amp ultrafast recovery rectifier manufactured by Micro Commercial Components (MCC). It features a maximum repetitive reverse voltage of 600 Volts and operates in a TO-263AC package. The device utilizes a planar structure die with soft recovery characteristics to minimize switching losses. Key electrical parameters include an average forward current of 15 Amperes per diode, a peak non-repetitive surge current of 200 Amperes, and a typical reverse recovery time of 55 nanoseconds at 25°C. The component supports junction temperatures up to 175°C.
Feature Summary
- Ultrafast recovery time with soft recovery characteristics for reduced switching noise
- Planar structure die design ensuring high reliability and low leakage current
- Halogen-free "Green" device compliant with RoHS standards
Applications
- High-frequency DC/DC converters
- Free-wheeling rectification in power supplies
- Polarity protection circuits
Procurement Notes
Verify the authenticity of the MURBF3060CT-TP by purchasing directly from Micro Commercial Components or their authorized distributors. MCC explicitly warns against unauthorized sources due to counterfeiting risks. Ensure the ordering suffix matches the required tape and reel packaging configuration before finalizing procurement orders.
Selection Notes
Select this component for applications requiring fast switching speeds and low reverse recovery charge. The TO-263AC package provides efficient thermal management via the exposed pad. Consider the 600V rating and 15A continuous current capability when designing circuits that demand high efficiency and robust performance under varying thermal conditions.
Part Context
This part belongs to the MURBF series of ultrafast recovery rectifiers from Micro Commercial Components. It is designed as a surface-mount alternative to through-hole devices, offering similar electrical performance in a compact form factor. The series targets modern power electronics where space constraints and switching speed are critical design factors.
Replacement Considerations
Direct substitutes must match the 600V rating, 15A per diode current, and TO-263AC package. Verify reverse recovery time specifications to ensure compatibility with existing circuit timing requirements.
FAQ
What is the typical reverse recovery time for the MURBF3060CT-TP?
The typical reverse recovery time (trr) is 55 nanoseconds at a junction temperature of 25°C.
Does the MURBF3060CT-TP have a common cathode configuration?
Yes, the internal structure consists of two diodes configured with a common cathode.
What is the maximum operating junction temperature?
The maximum operating junction temperature range extends up to 175°C.
