Product Detailed Parameters
- Description：DIODE ARRAY GP 400V 16A ITO220AB
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tube
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：400 V
- Current - Average Rectified (Io) (per Diode)：16A
- Voltage - Forward (Vf) (Max) @ If：1.3 V @ 8 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：50 ns
- Current - Reverse Leakage @ Vr：10 µA @ 400 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Through Hole

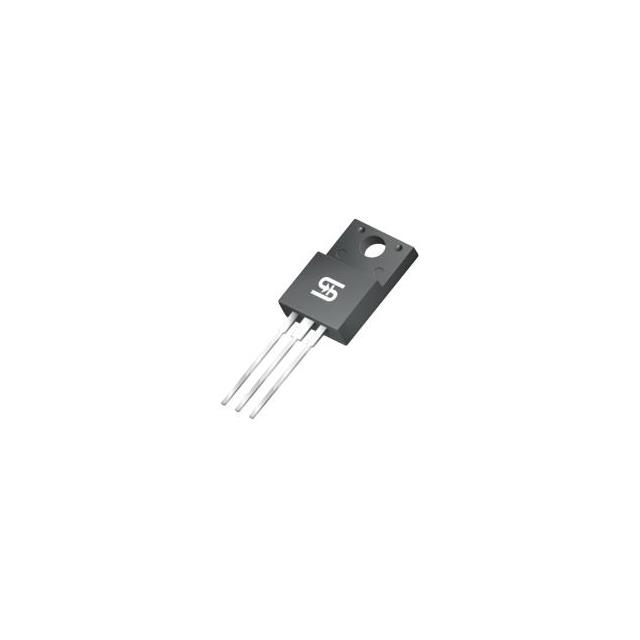

- Package / Case：TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package：ITO-220AB
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview
The MURF1640CTH is a silicon rectifier diode array manufactured by Taiwan Semiconductor Corporation. It features a common cathode configuration with two elements housed in an ITO-220AB package. The device supports a repetitive peak reverse voltage of 400 V and an average rectified output current of 16 A per diode. Key electrical characteristics include a maximum forward voltage of 1.3 V at 8 A, a reverse leakage current of 10 µA at 400 V, and a reverse recovery time of 50 ns. It operates within a junction temperature range of -55°C to 150°C and holds AEC-Q101 automotive qualification.
Feature Summary
- High frequency operation capability enabled by ultra-fast recovery characteristics
- Guard ring structure designed for enhanced ruggedness and long-term reliability
- Isolated tab construction suitable for heatsink mounting applications
Applications
- Switching power supplies
- Converters
- Freewheeling diodes
- Reverse battery protection circuits
Procurement Notes
Verify the specific suffix H against official datasheets to confirm packaging details, as standard variants may differ. Confirm AEC-Q101 automotive grade status if required for your application. Check RoHS compliance documentation for environmental regulations. Ensure the ITO-220AB footprint matches your PCB design constraints before ordering.
Selection Notes
Select this component when high-speed switching and high surge current handling are required in a through-hole format. The 16A rating suits moderate to high-power conversion tasks. Consider the 50ns recovery time for efficiency in high-frequency topologies. Verify thermal management requirements given the TO-220-3 physical dimensions and isolation needs.
Part Context
This part belongs to the MURF series of ultra-fast recovery rectifiers from Taiwan Semiconductor. It is functionally related to the MURF1640CT but distinguished by its specific packaging or tape-and-reel variant indicated by the suffix. The series targets industrial and automotive electronics requiring robust diode performance.
Replacement Considerations
Cross-reference with MURF1640CT for functional equivalence, noting potential packaging differences. Verify pinout compatibility with existing designs. Ensure replacement parts meet the same AEC-Q101 and RoHS standards.
