MURF1660CTH

Overview

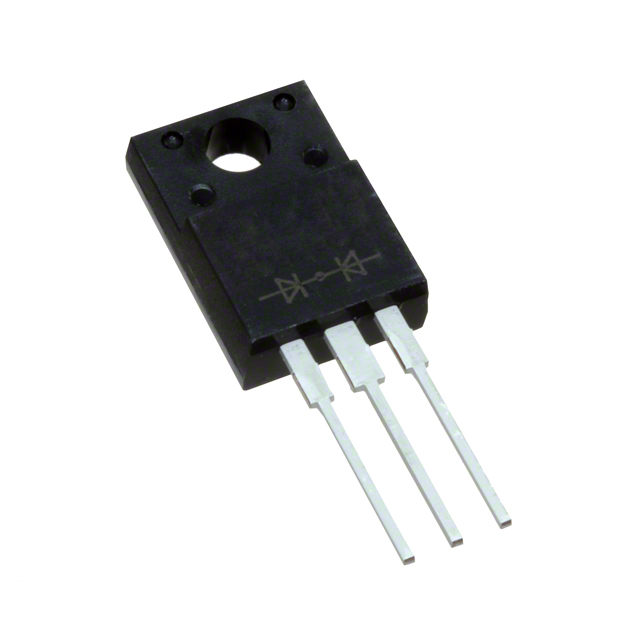

The MURF1660CTH is a fast recovery rectifier manufactured by Taiwan Semiconductor Corporation. It features a single-phase, common cathode configuration housed in a TO-220AB package with three leads. The device supports a maximum average forward rectified current of 16 amperes and offers a repetitive peak reverse voltage rating of 600 volts. Key electrical parameters include a typical reverse recovery time of 35 nanoseconds and a maximum non-repetitive surge current capability of 100 amperes.

Feature Summary

• Fast recovery characteristics for efficient switching applications
• Common cathode dual configuration within a single package
• High thermal performance via robust lead frame design

Applications

• High-frequency DC-to-DC converter circuits
• Free-wheeling rectification in PWM controlled power supplies
• Output rectification in isolated power conversion stages

Procurement Notes

Verify the specific suffix 'TH' against official datasheets to confirm tape-and-reel packaging or temperature grade variations. Ensure compatibility with standard TO-220AB mounting hardware. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated assemblies.

Selection Notes

Select this component when high-speed switching is required alongside moderate current handling capabilities. The common cathode arrangement simplifies circuit layout for half-bridge or full-wave topologies. Evaluate thermal management requirements based on the specified junction temperature limits and ambient operating conditions.

Part Context

This part belongs to the MURF series of fast recovery diodes from Taiwan Semiconductor. It serves as a specialized alternative to standard recovery rectifiers in applications demanding reduced switching losses. The TO-220AB form factor provides reliable mechanical stability for through-hole mounting on printed circuit boards.

Replacement Considerations

Cross-reference with MURS1660CTA-BP for similar specifications. Verify pinout compatibility and thermal resistance values before substitution.
