MURF2060CT

Description：DIODE ARRAY GP 600V 10A ITO220AB
Series：-

SKU:6fe60266f0f7 Category: Diode Arrays Brand: SMC Diode Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY GP 600V 10A ITO220AB
Series：-
Mfr：SMC Diode Solutions
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io) (per Diode)：10A
Voltage - Forward (Vf) (Max) @ If：2.2 V @ 10 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：50 ns
Current - Reverse Leakage @ Vr：5 µA @ 600 V
Operating Temperature - Junction：-50°C ~ 150°C
Mounting Type：Through Hole

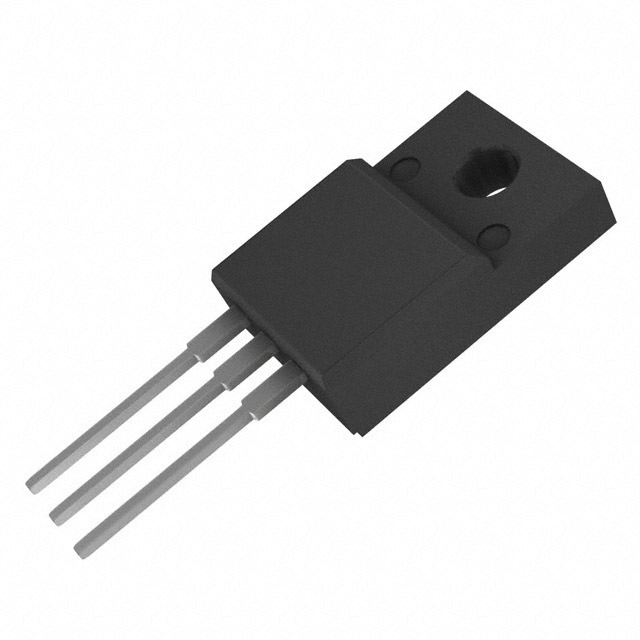

Package / Case：TO-220-3 Full Pack, Isolated Tab
Supplier Device Package：ITO-220AB
Grade：-
Qualification：-

Download product information

MURF2060CT

Overview

The MURF2060CT is a super fast recovery silicon rectifier manufactured by SMC Diode Solutions. It features a maximum average forward rectified current of 20 A and a peak repetitive reverse voltage of 600 V. The device utilizes a TO-220AB encapsulation structure with a planar design. Key electrical characteristics include a maximum DC blocking voltage of 600 V, a peak forward surge current of 300 A, and a typical junction capacitance of 50 pF. The component operates within a temperature range of -65°C to +150°C.

Feature Summary

Super fast recovery performance for high-frequency applications
Planar die construction for enhanced reliability
High surge current capability

Applications

Electronic products requiring high-speed rectification
Power supply circuits
Inverter systems

Procurement Notes

Verify the manufacturer part number against official SMC Diode Solutions documentation to ensure authenticity. Confirm that the package type matches the required TO-220AB specification. Check RoHS compliance status if environmental regulations apply to your specific manufacturing process or end-use application requirements.

Selection Notes

Select this component when a 20 A current rating and 600 V reverse voltage are required in a through-hole package. Ensure the circuit design accommodates the specified thermal operating range. Compare the 35 ns reverse recovery time against system switching frequency requirements to validate suitability for the intended high-speed application context.

Part Context

This component belongs to the MURF series of super fast recovery diodes produced by SMC Diode Solutions. The series offers various voltage ratings while maintaining consistent current handling capabilities. These devices are designed for general-purpose rectification where faster switching speeds are necessary compared to standard recovery diodes.

Replacement Considerations

Potential substitutes include the Murf1060CT for lower current requirements or other MURF series variants with matching voltage ratings. Verify pinout compatibility and thermal dissipation characteristics before substituting.
