Product Detailed Parameters
- Description：DIODE ARRAY GP 200V 10A TO-220AB
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io) (per Diode)：10A
- Voltage - Forward (Vf) (Max) @ If：1 V @ 5 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：5 µA @ 200 V
- Operating Temperature - Junction：-55°C ~ 175°C
- Mounting Type：Through Hole

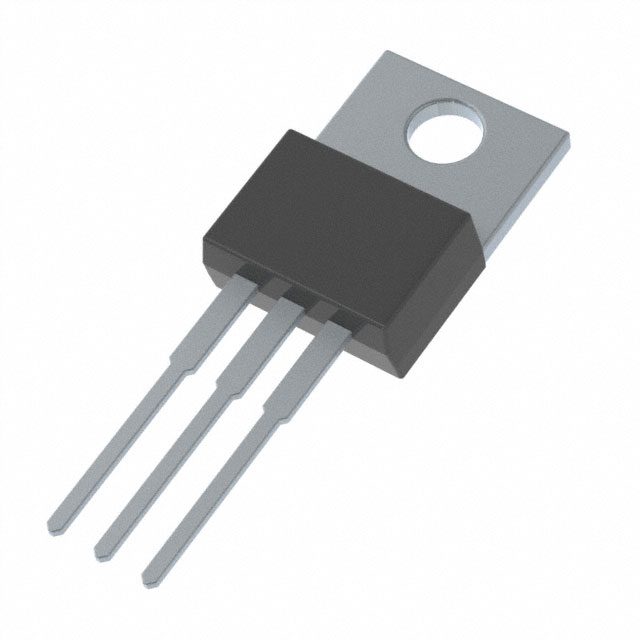

- Package / Case：TO-220-3
- Supplier Device Package：TO-220AB
- Grade：-
- Qualification：-
Download product information
Overview
The MURS1020CTA-BP is a 10 Amp, 200 Volt ultrafast recovery rectifier manufactured by Micro Commercial Components (MCC). It utilizes a planar structure die with soft recovery characteristics and operates within a junction temperature range of -55°C to +175°C. The device features a maximum thermal resistance of 2°C/W from junction to case and meets UL 94 V-0 flammability ratings for its epoxy encapsulation. Electrical specifications include a typical reverse recovery time of 25ns at 25°C and a peak forward surge current rating of 70A.
Feature Summary
- Ultrafast recovery time with low switching losses and high efficiency
- Planar structure die providing soft recovery characteristics
- Low reverse leakage current across operating temperatures
- Epoxy formulation meets UL 94 V-0 flammability rating
Applications
- High frequency power supply circuits
- DC-to-DC converter modules
- Free-wheeling diode applications in inductive loads
Procurement Notes
Verify the authenticity of the component by purchasing exclusively from Micro Commercial Components or their authorized distributors. Counterfeit parts are prevalent; unauthorized sources do not provide warranty coverage or traceability. Confirm that the ordering suffix matches the required packaging configuration and compliance standards before finalizing procurement orders.
Selection Notes
Select this component when an ultrafast recovery rectifier is required for high-frequency switching applications. Ensure the design accommodates the specified 200V peak reverse voltage and 10A average forward current limits. Consider the TO-220AB package dimensions and the 2°C/W thermal resistance for adequate heatsinking to maintain safe junction temperatures under load.
Part Context
This part belongs to the MURS series of fast recovery rectifiers produced by Micro Commercial Components. It is designed for general-purpose high-speed switching applications requiring low reverse recovery charge. The device is housed in a TO-220AB through-hole package suitable for board mounting with external heatsinks.
Replacement Considerations
Consult official MCC documentation for verified substitute part numbers. Do not assume functional equivalence based on generic electrical parameters alone.
