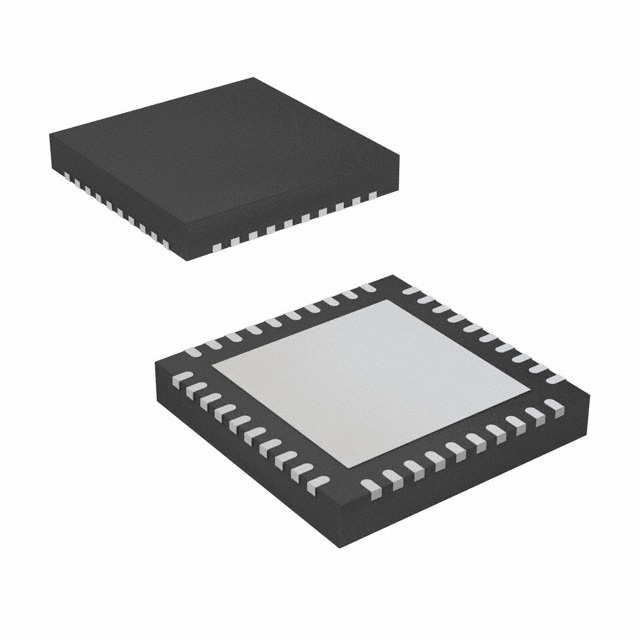

NCN5121MNTWG

Drivers, Receivers, Transceivers Overview

The NCN5121MNTWG is a KNX transceiver integrated circuit designed for twisted pair networks. It integrates a 20 V regulator and two high-efficiency DC-DC converters to generate fixed 3.3 V and selectable 3.3 to 21 V regulated voltages, each with 100 mA drive capability. The device supports data transmission on KNX bus systems, featuring selectable current slope, bus voltage monitoring, and secure coupling mechanisms.

Drivers, Receivers, Transceivers Feature Summary

• Integrates power regulation and DC-DC conversion for simplified system design
• Supports secure and reliable coupling with the KNX bus
• Enables configurable current slope and bus voltage monitoring

Drivers, Receivers, Transceivers Applications

• KNX twisted pair network data transmission
• Building automation control systems
• High-power KNX application interfaces

Drivers, Receivers, Transceivers Procurement Notes

Verify the component status as the source indicates it is not recommended for new designs. Confirm availability of the pin-compatible replacement NCN5121 before procurement. Ensure the specific suffix matches the required package and tape-and-reel specifications from official distributor listings.

Drivers, Receivers, Transceivers Selection Notes

Select this component only for legacy or existing KNX implementations where the NCN5120 predecessor was utilized. For new designs, evaluate the NCN5121 as the primary alternative due to its updated status. Verify that the integrated power stages meet the specific voltage and current requirements of the target bus topology.

Drivers, Receivers, Transceivers Part Context

This part belongs to the ON Semiconductor KNX series of transceivers. It serves as an evolution of the NCN5120, offering similar functionality with potential improvements in integration or support. It is categorized under communication integrated circuits specifically for wired building automation protocols.

Drivers, Receivers, Transceivers Replacement Considerations

The NCN5121 is explicitly identified as a pin-compatible replacement for the NCN5120. Designers should transition to the NCN5121 for new projects to ensure continued supply and support.
