NCV274DTBR2G

Instrumentation, Op Amps, Buffer Amps Overview

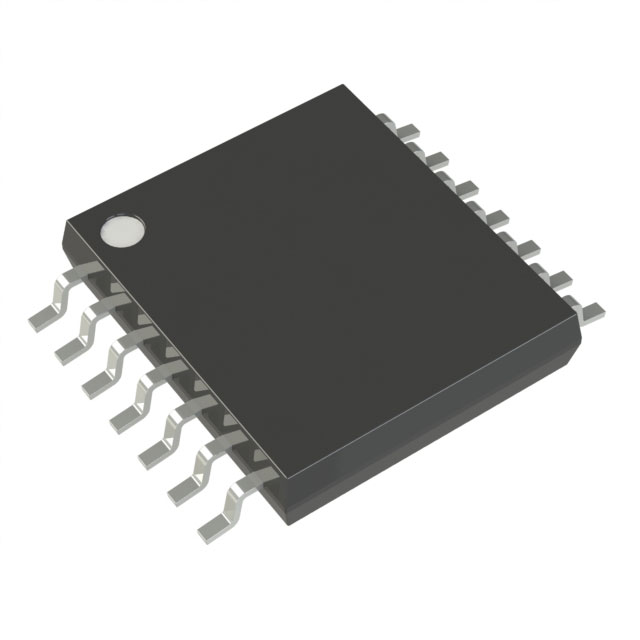

The NCV274DTBR2G is a quad operational amplifier from onsemi, part of the TLV274 series. It features rail-to-rail input and output capabilities with a gain-bandwidth product of 3.2 MHz and a slew rate of 2.6 V/us. The device operates on a single supply voltage ranging from 2.7 V to 16 V, drawing 550 uA of quiescent current per channel. Key electrical specifications include an input offset voltage of 5 mV, input bias current of 150 pA, and an output current capability of 13 mA per channel. It provides a common-mode rejection ratio of 69 dB and an input voltage noise density of 30 nV/sqrt Hz. The component is housed in a SOIC-14 package and supports operating temperatures from -40 C to +105 C.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Quad configuration with rail-to-rail input and output performance
• Low power consumption suitable for battery-operated applications
• Automotive-grade qualification ensuring reliability in harsh environments

Instrumentation, Op Amps, Buffer Amps Applications

• Battery-powered sensor interfaces
• Active filters in automotive systems
• Signal conditioning circuits

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific suffix DTBR2G against official datasheets to confirm package type and tape-and-reel specifications. Ensure the component meets AEC-Q100 automotive standards if required for your application. Cross-reference the manufacturer's latest documentation for any updates to pinout or electrical characteristics before finalizing procurement.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when a quad amplifier with rail-to-rail I/O is needed in a compact SOIC-14 package. It is suitable for designs requiring low power consumption and moderate bandwidth. Consider the input offset voltage and bias current specifications for precision requirements. Verify that the supply voltage range aligns with the system's power constraints.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the TLV274 family of low-power, rail-to-rail operational amplifiers. The NCV prefix indicates automotive-grade qualification. The series is designed for general-purpose analog signal processing tasks where space and power efficiency are critical. It complements other members of the family offering dual or single-channel configurations.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Check for direct replacements within the TLV274 series or compatible quad op-amps with similar rail-to-rail specifications. Ensure pin compatibility and electrical parameter alignment for seamless integration.
