NCV7381DP0G

Drivers, Receivers, Transceivers Overview

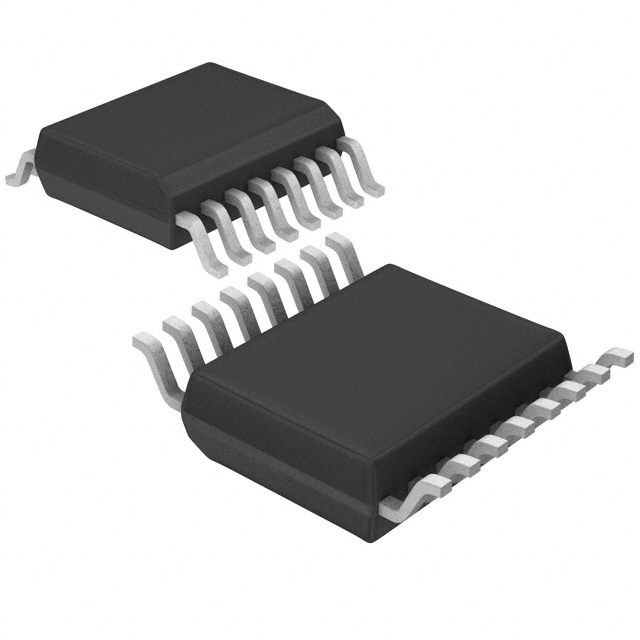

The NCV7381DP0G is a single-channel FlexRay bus driver manufactured by onsemi, compliant with the FlexRay Electrical Physical Layer Specification Rev. 3.0.1. It supports data transmission rates up to 10 Mbps and operates within a supply voltage range of 4.75V to 5.25V. The device features integrated ESD protection and functions across an extended temperature range from -40°C to +150°C. Packaged in a compact SSOP-16 format measuring 6.33mm x 3.96mm x 1.99mm, it is AEC-Q100 qualified for automotive reliability.

Drivers, Receivers, Transceivers Feature Summary

• Compliant with FlexRay Electrical Physical Layer Specification Rev. 3.0.1
• Integrated electrostatic discharge (ESD) protection circuitry
• AEC-Q100 qualified for automotive grade reliability

Drivers, Receivers, Transceivers Applications

• Automotive FlexRay network nodes
• Vehicle body control modules
• Chassis systems communication interfaces

Drivers, Receivers, Transceivers Procurement Notes

Verify the specific suffix against official datasheets to confirm package type and tape-and-reel configuration. Ensure compatibility with existing PCB footprints and thermal management requirements before finalizing procurement orders.

Drivers, Receivers, Transceivers Selection Notes

Select this component for applications requiring strict adherence to FlexRay Rev 3.0.1 standards. Consider the SSOP-16 package constraints and the wide operating temperature range when designing for harsh automotive environments.

Drivers, Receivers, Transceivers Part Context

This part belongs to the NCV7381C series of high-speed transceivers designed specifically for automotive networks. It serves as a critical interface between microcontrollers and the physical FlexRay bus, ensuring robust signal integrity in electrically noisy vehicle environments.

Drivers, Receivers, Transceivers Replacement Considerations

Check for direct pin-compatible alternatives within the same series or other manufacturers' FlexRay transceivers that meet the same electrical specifications and automotive qualification standards.
