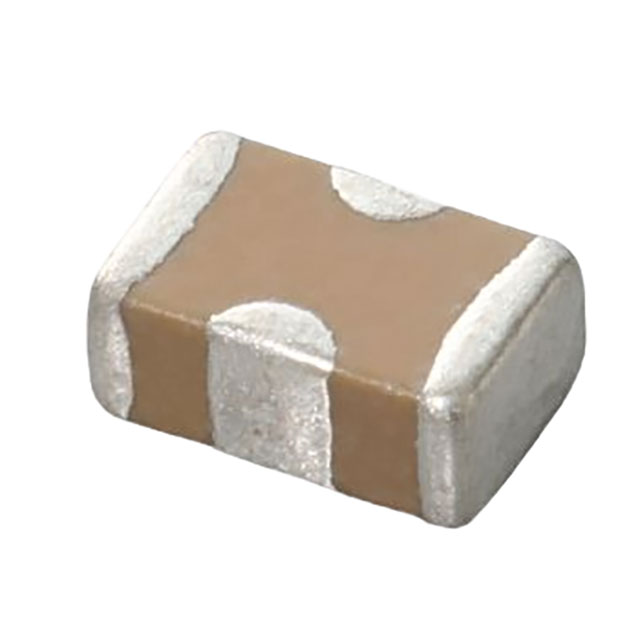

NFM15PC105D0G3D

Overview

The NFM15PC105D0G3D is a three-terminal feedthrough capacitor from Murata Electronics, designed for surface-mount applications. It features a capacitance of 1 µF with a ±20% tolerance and a DC voltage rating of 4 VDC. The component utilizes an SMD/SMT termination type within a 0402 (1005 metric) package, measuring 1 mm in length, 0.5 mm in width, and 0.4 mm in height. It supports a current rating of 2 A and maintains a maximum DC resistance of 30 mOhms. Operating temperatures range from -55°C to +105°C.

Feature Summary

• Three-terminal feedthrough architecture providing low equivalent series inductance for effective high-frequency noise suppression.
• Compact 0402 surface-mount footprint enabling dense circuit board layouts while maintaining robust filtering performance.
• High current handling capability suitable for power line decoupling and signal integrity protection.

Applications

• Power supply input filtering in portable electronic devices
• Noise suppression on data lines in mobile communication modules
• Decoupling capacitors in compact consumer electronics

Procurement Notes

Verify the specific suffix D0G3D against official Murata documentation to confirm packaging format and compliance status. Ensure compatibility with standard reflow soldering profiles for 0402 components. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability before procurement.

Selection Notes

Select this component when a 1 µF capacitance at 4 VDC is required in a minimal 0402 footprint. Consider its 2 A current rating and low DC resistance for power rail applications. Evaluate thermal requirements against the -55°C to +105°C operating range. Compare against similar NFM15TC variants if different voltage ratings or temperature coefficients are needed.

Part Context

This component belongs to the Murata EMIFIL NFM15PC series of feedthrough capacitors. These parts are engineered for general-purpose low ESL applications, offering superior high-frequency attenuation compared to standard two-terminal capacitors. The series is widely used in mobile phones and other space-constrained digital circuits requiring efficient EMI reduction.

FAQ

What is the physical package size of the NFM15PC105D0G3D?

The component is housed in a 0402 (1005 metric) surface-mount package with dimensions of 1.0 mm x 0.5 mm x 0.4 mm.

Does this capacitor support high-current applications?

Yes, it has a rated current capacity of 2 A, making it suitable for power line filtering in compact designs.
