NFM15PC755R0E3D

Overview

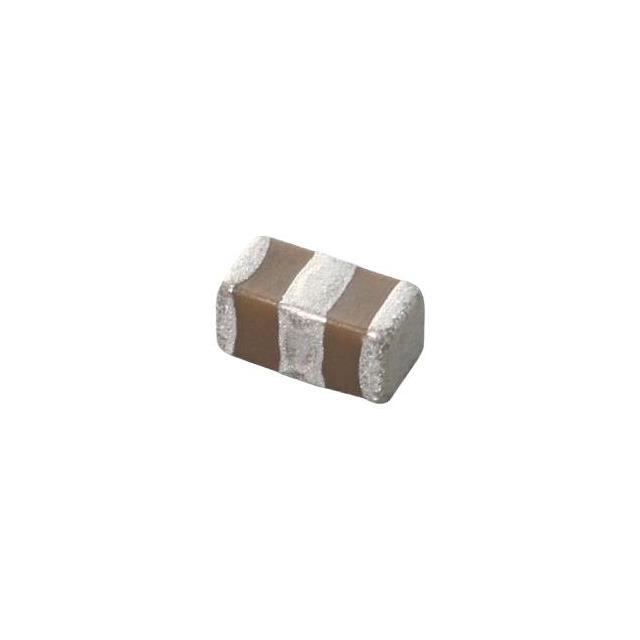

The Murata NFM15PC755R0E3D is a three-terminal feedthrough capacitor from the EMIFIL NFM15PC series, designed for high-performance noise suppression in compact electronic devices. It features a capacitance of 7.5 µF with a ±20% tolerance and a DC voltage rating of 6.3 VDC. Housed in a 0402 (1005 metric) surface-mount package measuring 1.0 mm x 0.5 mm x 0.8 mm, it offers low equivalent series inductance (ESL). The component supports a rated current of 4 A and operates within a temperature range of -55°C to +105°C.

Feature Summary

• Three-terminal feedthrough architecture provides superior high-frequency noise attenuation compared to standard two-terminal capacitors.
• Low ESL design ensures effective decoupling and filtering performance in high-speed digital circuits.
• Robust construction supports high ripple current handling capabilities suitable for power line applications.

Applications

• Decoupling and filtering for portable mobile phones and smartphones.
• Noise suppression in automotive infotainment and control systems.
• Power supply filtering for industrial equipment and communication base stations.

Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact capacitance, voltage, and termination specifications. Ensure compatibility with automated pick-and-place equipment due to the small 0402 footprint. Confirm RoHS compliance status if required by your manufacturing standards. Cross-reference part numbers carefully as minor suffix variations may indicate different packaging or material compositions.

Selection Notes

Select this component when space-constrained designs require high capacitance values with low parasitic inductance. The 0402 package allows for dense PCB layouts while maintaining reliable soldering through SMT processes. Consider the 6.3V rating and 4A current capability to ensure adequate margin for your specific circuit operating conditions and thermal environment.

Part Context

This component belongs to Murata's EMIFIL NFM15PC series, which specializes in miniaturized feedthrough capacitors. The series is engineered to meet the demands of modern electronics requiring efficient electromagnetic interference (EMI) suppression in minimal board areas. It complements other components in the NFM family by offering optimized performance for high-current, low-voltage applications.

Replacement Considerations

Direct substitutes include other Murata NFM15PC series variants with matching 0402 footprints and similar electrical ratings, such as NFM15PC435R0E3D or NFM15PC915R0E3D, provided capacitance differences are acceptable within the circuit design constraints.
