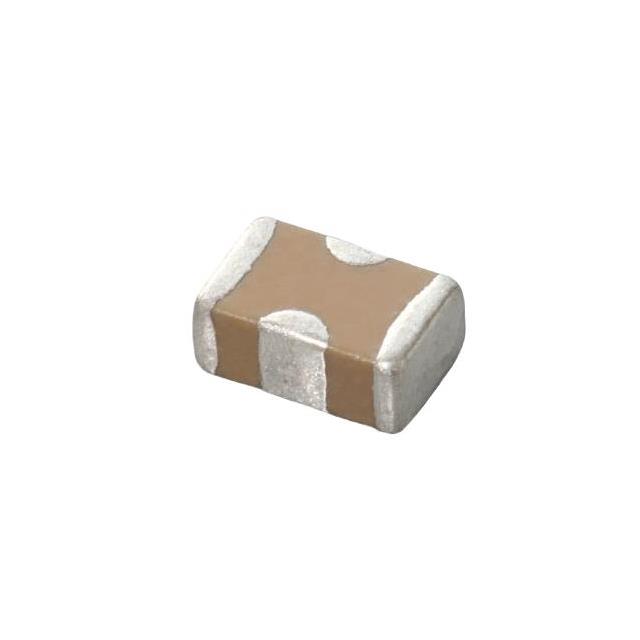

NFM31PC276D0E3L

$0.61

Description：CAP CER 4.3UF 4V 3-TERM 0402
Series：NFM
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:05b3211a7570 Category: Feed Through Capacitors Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP CER 4.3UF 4V 3-TERM 0402
Series：NFM
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Rated：2.5V
Current：6:00 AM
Operating Temperature：-55°C ~ 105°C
Mounting Type：Surface Mount
Package / Case：1206 (3216 Metric), 3 PC Pad
Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
Capacitance：27 µF
Tolerance：±20%
DC Resistance (DCR) (Max)：5mOhm
Insertion Loss：-
Temperature Coefficient：-
Ratings：-
Height (Max)：0.059" (1.50mm)
Thread Size：-

Download product information

NFM31PC276D0E3L

Overview

The NFM31PC276D0E3L is a three-terminal feedthrough capacitor from Murata Electronics, designed for surface mount technology in a 1206 (3216 metric) package. It features a capacitance of 27 µF with a DC voltage rating of 2.5 VDC and a tolerance of ±20%. The component supports a rated current of 6 A and exhibits an insulation resistance of 20 MOhms. It operates within a temperature range of -40°C to +85°C. The device utilizes SMD/SMT termination and includes one ground terminal measuring 1.1 mm.

Feature Summary

Three-terminal feedthrough architecture providing effective electromagnetic interference filtering
High current handling capability suitable for power line applications
Compact surface-mount form factor enabling dense circuit board layouts

Applications

Power supply input filtering
Noise suppression in portable electronic devices
EMI reduction in automotive electronics

Procurement Notes

Verify the specific suffix D0E3L against official Murata documentation to confirm the exact voltage rating and temperature characteristics. Ensure compatibility with standard 1206 footprint dimensions during PCB layout. Confirm RoHS compliance status through the manufacturer's latest certification documents before final procurement approval.

Selection Notes

Select this component when high capacitance values are required in a small surface-mount package for low-voltage applications. Consider the 6 A current rating for power integrity requirements. Evaluate the 2.5 VDC rating against maximum operating voltages to prevent dielectric breakdown. Compare thermal performance against the specified operating temperature range for environmental suitability.

Part Context

This part belongs to the NFM31PC series of EMIFIL feedthrough capacitors. The series is characterized by its ability to handle significant current while maintaining compact dimensions. It serves as a passive filter component within Murata's broader portfolio of electromagnetic interference suppression solutions for modern electronic systems.

Replacement Considerations

NFM31PC276B0J3L offers similar capacitance but differs in voltage rating and temperature specifications. Verify electrical parameters and physical dimensions before substitution. Consult official Murata cross-reference guides for validated alternatives.
