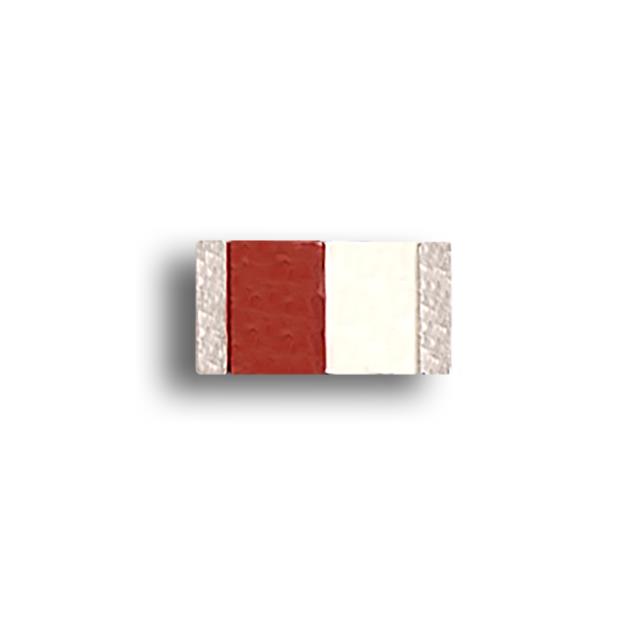

NGCL1206UW2R440G3TRF is listed in the Antennas RF range at ChipApex. The manufacturer field lists NIC Components Corp. Its product description is RF ANT CER CHIP 1206 2.4Ghz SOL. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for NGCL1206UW2R440G3TRF
- Description：RF ANT CER CHIP 1206 2.4Ghz SOL
- Series：NGCL
- Mfr：NIC Components Corp
- Package：Tape & Reel (TR)
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：5.55GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：-1
- Return Loss：-
- Gain：2.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：-
- Applications：Bluetooth, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for NGCL1206UW2R440G3TRF
Antennas RF Overview
The NGCL1206UW2R440G3TRF is an RF antenna manufactured by NIC Components Corp, designed for surface-mount integration. It operates within the 2.4 GHz ISM band, specifically targeting Bluetooth and Wi-Fi applications. The component utilizes a compact 1206 package form factor to facilitate automated assembly processes. It provides reliable wireless connectivity solutions for portable electronic devices requiring efficient signal transmission and reception in constrained spatial environments.
