NI-10M-2451

Oscillators Overview

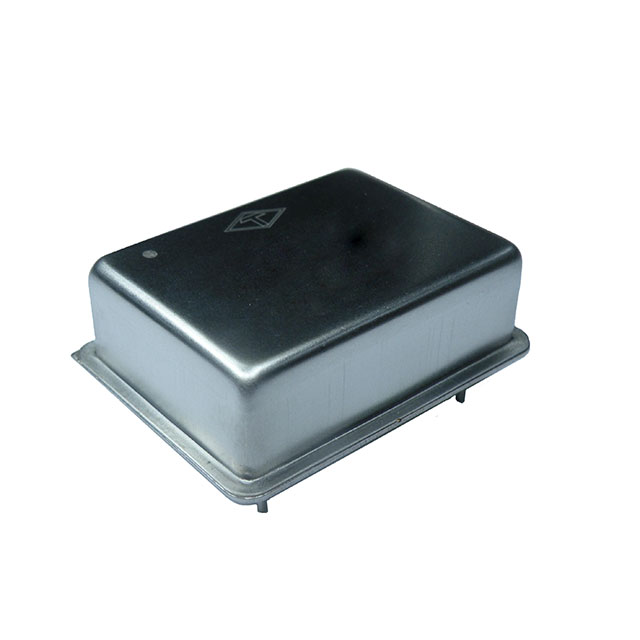

The Taitien NI-10M-2451 is a crystal oscillator belonging to the OCXO category, operating at a frequency of 10 MHz. It features an LVTTL output signal and requires a 12V supply voltage with a maximum current consumption of 400mA. The unit provides high frequency stability of ±10ppb and functions within a temperature range of -40°C to 85°C. It utilizes a through-hole installation method in a 6-DIP package measuring 36.32mm x 27.18mm x 12.70mm.

Oscillators Feature Summary

• High frequency stability achieved through oven-controlled crystal oscillator technology
• LVTTL output interface for digital logic compatibility
• Robust thermal performance across extended industrial temperature ranges

Oscillators Applications

• Precision timing systems requiring low phase noise
• Telecommunications base station synchronization
• Test and measurement instrumentation clocks

Oscillators Procurement Notes

Verify the specific model suffix against official Taitien documentation to confirm exact electrical parameters and environmental ratings. Ensure the required supply voltage and current capacity align with system design constraints before procurement. Confirm RoHS compliance status if restricted substances are prohibited in the application environment.

Oscillators Selection Notes

Select this component when superior short-term and long-term frequency stability is critical compared to standard TCXO or VCXO solutions. Consider the higher power consumption inherent to oven-controlled designs versus lower-power alternatives. Evaluate the physical footprint requirements against available board space for the DIP package configuration.

Oscillators Part Context

This part belongs to the NI-10M series of oscillators manufactured by Taitien. The series includes various variants differentiated by output types, stability levels, and temperature ranges. These components are designed for applications demanding precise clock signals where frequency drift must be minimized under varying environmental conditions.

Oscillators Replacement Considerations

Direct substitutes include other Taitien models within the NI-10M series such as NI-10M-2805 or NI-10M-2852, provided they match the required stability and temperature specifications. Cross-manufacturer replacements require careful verification of pinout compatibility and electrical characteristics.
