NJVMJK32CTWG

Overview

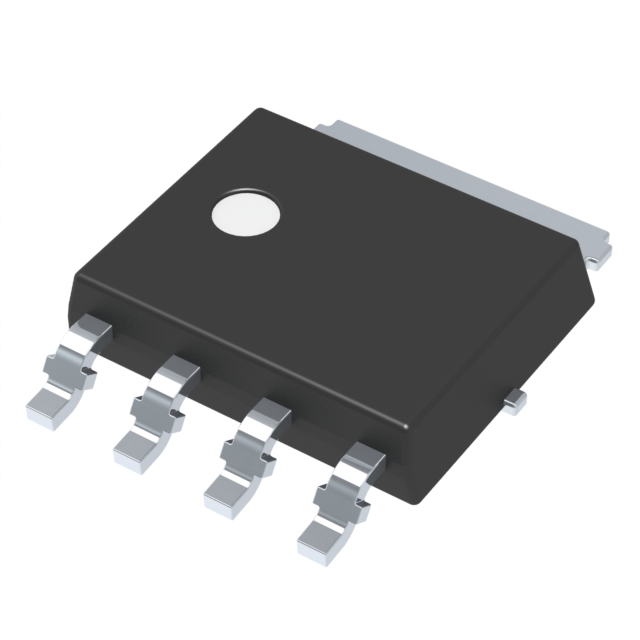

The NJVMJK32CTWG is a PNP general-purpose power transistor from onsemi, rated for 100 V collector-emitter voltage and 3 A continuous collector current. It utilizes an LFPAK4 5x6 (CASE 760AB) surface-mount package to provide excellent thermal conduction with a junction-to-case thermal resistance of 2.4 °C/W. The device features a gain bandwidth product of 3 MHz and a maximum DC current gain of 60 at -1 A. Designed for automotive environments, it holds AEC-Q101 qualification and PPAP capability.

Feature Summary

• Complementary NPN counterpart available as MJK31C
• Automotive-grade qualification with AEC-Q101 certification and PPAP capability
• LFPAK4 5x6 package optimized for high thermal conductivity

Applications

• Air bag deployment systems
• Power train control units
• Instrument clusters
• General purpose regulators and converters

Procurement Notes

Verify the specific ordering suffix 'NJVM' to confirm compliance with unique site and control change requirements mandated by the customer. Ensure the component meets the necessary PPAP documentation standards required for automotive supply chains before finalizing procurement orders.

Selection Notes

Select this PNP transistor when a complementary pair to the MJK31C is required in a low-profile surface-mount configuration. The LFPAK4 5x6 package supports up to 3 A continuous current with efficient heat dissipation suitable for dense PCB layouts.

Part Context

This part belongs to the MJK32C family of bipolar junction transistors designed for robust switching applications. The NJV prefix indicates specific manufacturing controls for automotive reliability, distinguishing it from standard commercial variants while maintaining identical electrical performance specifications.

Replacement Considerations

The MJK32CTWG serves as the direct commercial equivalent without the NJV prefix. For complementary N-channel requirements, the MJK31C series provides the matching device within the same thermal and electrical envelope.
