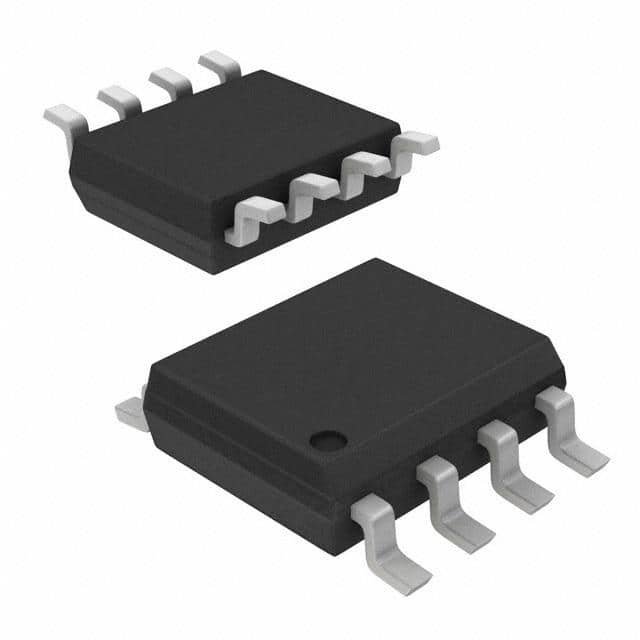

NL37WZ06U

Overview

The NL37WZ06U is a high-performance triple inverter featuring open drain outputs, designed for operation with supply voltages ranging from 1.65 V to 5.5 V. The internal circuitry ensures robust signal integrity across this voltage range. It exhibits a typical propagation delay of 2.1 ns at a 5 V supply. The device supports inputs and outputs that are overvoltage tolerant up to 5.5 V, allowing safe interfacing with various logic levels within the specified operating range.

Feature Summary

• Triple inverter configuration with open drain output structure
• Wide single-supply voltage operation capability
• High-speed signal inversion performance
• Input and output overvoltage tolerance

Applications

• General-purpose digital signal inversion in low-voltage systems
• Level shifting interfaces requiring open drain topology
• High-speed data line buffering and conditioning

Procurement Notes

Verify the specific suffix 'U' against the manufacturer's official datasheet to confirm package type and tape/reel specifications. Ensure compliance requirements such as RoHS and halogen-free status match project needs by checking the Material Composition Declaration. Confirm lead time and availability directly with authorized distributors or the factory, as these details are subject to change and require real-time verification.

Selection Notes

Select this component when a triple inverter with open drain outputs is required for low-voltage applications between 1.65 V and 5.5 V. Consider its 2.1 ns propagation delay for high-speed digital designs. Verify that the overvoltage tolerance meets the system's input/output voltage constraints. Compare pin compatibility and package dimensions with existing board layouts before finalizing the selection.

Part Context

This part belongs to onsemi's family of high-performance logic inverters. It is categorized under gates and inverters, specifically designed for efficient signal processing in portable and battery-operated devices. The series emphasizes low power consumption and fast switching speeds, making it suitable for modern electronic systems requiring reliable logic inversion in compact form factors.

Replacement Considerations

Check for direct pin-compatible alternatives within the same logic family. Verify that any substitute maintains the triple inverter configuration, open drain output type, and compatible voltage range. Ensure the replacement offers similar propagation delay characteristics to maintain system timing integrity.
