NP925GIL1RPSM50F is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenna Technologies Limited Company. Its product description is 925 MHZ GROUND IND SLOT OMNI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for NP925GIL1RPSM50F
- Description：925 MHZ GROUND IND SLOT OMNI
- Series：-
- Mfr：Antenna Technologies Limited Company
- Package：Box
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：925MHz
- Frequency Range：890MHz ~ 960MHz
- Antenna Type：-
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：2.5dBi
- Features：-
- Termination：SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：-
- Power - Max：50 W
Antennas RF datasheet and documents for NP925GIL1RPSM50F
Antennas RF Overview

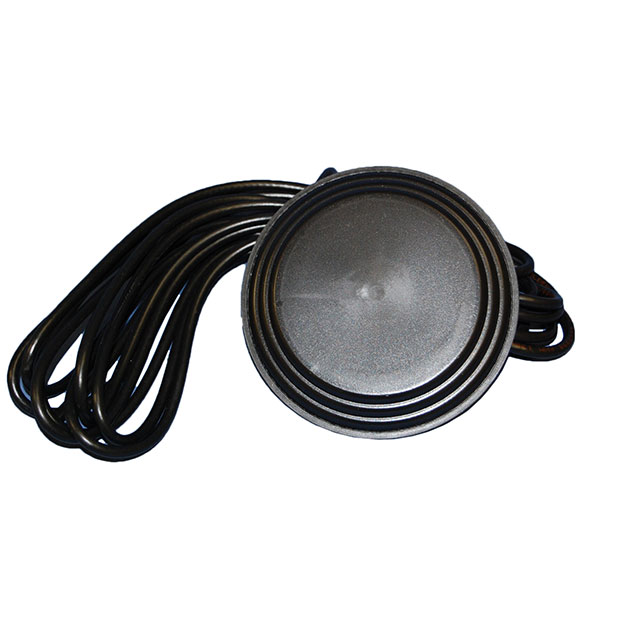

The NP925GIL1RPSM50F is a ground-independent slot omnidirectional antenna manufactured by Antenna Technologies Limited Company. It operates within the 890MHz to 960MHz frequency band, centered at 925MHz. The component provides a gain of 2.5dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 1.5:1 across its specified range. It utilizes an SMA connector interface and features an adhesive mounting method for installation.
Antennas RF Feature Summary
- Ground-independent slot design for omnidirectional coverage
- Adhesive mounting configuration for secure attachment
- SMA connector interface for RF transmission
Antennas RF Applications
- Commercial enterprise wireless applications
- Defense wireless systems
- RF communication infrastructure
Antennas RF Procurement Notes
Verify the specific manufacturer part number NP925GIL1RPSM50F against official Antenna Technologies documentation to confirm technical specifications. Ensure compatibility with required frequency bands and connector types before integration. Cross-reference datasheets for environmental ratings and mechanical dimensions to validate suitability for the intended deployment environment.
Antennas RF Selection Notes
Select this component when a ground-independent omnidirectional solution is required for the 890-960MHz spectrum. The 2.5dBi gain and low VSWR support efficient signal transmission in compact installations. Consider the adhesive mounting style for permanent or semi-permanent setups where traditional hardware mounting is impractical.
Antennas RF Part Context
This antenna belongs to the commercial and defense wireless product line of Antenna Technologies Limited Company. The company specializes in designing antennas for various wireless applications, including direction finding and SATCOM. This specific model addresses needs for reliable omnidirectional coverage in specialized RF environments.
