NPA-700M-015A

Pressure Sensors Transducers Overview

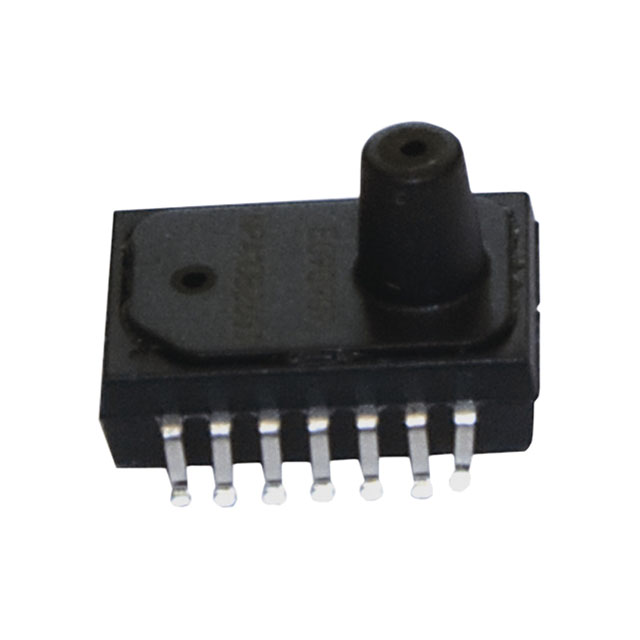

The NPA-700M-015A is a board-mount pressure sensor from the NPA-700 series by Amphenol Advanced Sensors. It features an absolute pressure type with a working pressure of 15 psi (103.42 kPa). The device provides digital output via an I2C interface and offers a resolution of 14 bits. It operates within a temperature range of -40°C to +125°C and supports a maximum supply voltage of 5 V. The sensor is housed in a SOIC-14 package and utilizes a top port configuration.

Pressure Sensors Transducers Feature Summary

• Digital I2C interface for direct microcontroller integration
• High-resolution 14-bit data output
• Wide operating temperature range suitable for industrial environments

Pressure Sensors Transducers Applications

• Industrial automation systems
• HVAC monitoring
• Medical devices requiring precise pressure measurement

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'A' indicates absolute pressure reference, distinct from gauge variants like 'G'. Confirm the SOIC-14 package dimensions match PCB footprint requirements. Check humidity sensitivity levels and reflow soldering profiles against manufacturing standards. Ensure I2C address compatibility with target system architecture before procurement.

Pressure Sensors Transducers Selection Notes

Select this model when absolute pressure measurement up to 15 psi is required with digital connectivity. Compare accuracy specifications against application tolerances. Consider the SOIC-14 form factor for space-constrained board designs. Validate supply voltage limits against system power rails to ensure stable operation across the full temperature range.

Pressure Sensors Transducers Part Context

Part of the NPA-700 series, designed for compact board-mount applications. Differentiates from NPA-600 or NPI-19 series through specific port configurations and interface options. Provides a balance of precision and digital ease-of-use for embedded sensing tasks.

Pressure Sensors Transducers Replacement Considerations

NPA-700M-015G serves as a gauge pressure alternative within the same series. NPA-700M-030G offers higher pressure range capability. Verify pinout and software driver compatibility when substituting with other NPA-700 variants.
